These are
fully regulated switchmode power
converters, designed to allow the use
of 24 volt equipment in 12 vehicles.
These are attractive, reliable, robust
DC/DC converters good for fork lifts,
off-road, military, construction and
recreational equipment. They are
typically used for military equipment,
PLCs, laser scanners, and wherever
rugged 24VDC is required. They are
ultra quiet, both in the input and
noise fed back into the
input.
To determine the amperage
you need just add up the watts of all
the equipment and divide by 24 volts.
These converters are fully
isolated, and can be used for almost
all 24 volt applications, grounded
positive, negative, or ungrounded.
| DC-DC
Converters |
Heavy
Duty
5 Amp
DC to DC
Converter
 |
Marine
Grade
5 Amp
DC to DC
Converter
|
Military
Grade
5 Amp
DC to DC
Converter
|
Part
Number
and Price |
PVTC315-24-48
$963
Allow
up to 14 days for shipping
|
PVTC315-24-48-W
$1107
Allow up
to 14 days for shipping
|
PVTC315-24-48-MIL
$1252
Allow up to 14
days for shipping
|
| Input Voltage |
20 to 35VDC |
| Max Input current at
No Load |
mA |
| Output Voltage
Nominal |
48 VDC |
| Output Voltage for
Standard Product |
54.4 ± .05 VDC |
| Max Output
Current(s) |
6 Amps
10 minutes
maximum |
| Max Output Power
|
326 watts |
| Max Output Power
(continuous) |
272 Watts
(5 Amps) |
| Output current
limit? |
Yes |
| Operating Temperature
Range |
-25°C to
+40°C |
-25°C to +40°C |
-40°C to +55°C |
| Derating |
2.5% per °C from
40°C to +50°C |
2.5% per °C from
40°C to+50°C |
2.5% per °C from
+55°C to +85°C |
| Efficiency |
>80 % |
| Line Regulation |
<±0.5% |
| Load Regulation |
<±0.5% |
| Switching
frequency |
kHz |
| Output ripple
noise |
<25 mV rms |
| Noise inserted on the
input terminals |
<25 mV rms |
| Isolation |
Fully Isolated
>1500
volts isolation from case to any
terminal or between input and output
terminals |
| Remote power
on/off |
No |
| Input Fuse |
|
|
|
| Connections |
Screw terminals |
| Switch |
On/Off rocker switch on
front panel |
| Protection |
Over Voltage , Over Current,
Short Circuit , Reverse Polarity , Over
Load |
| Dimensions |
201 x 152 x
61 (7.9 x 6 x 2.4 inches) |
| Drawings |

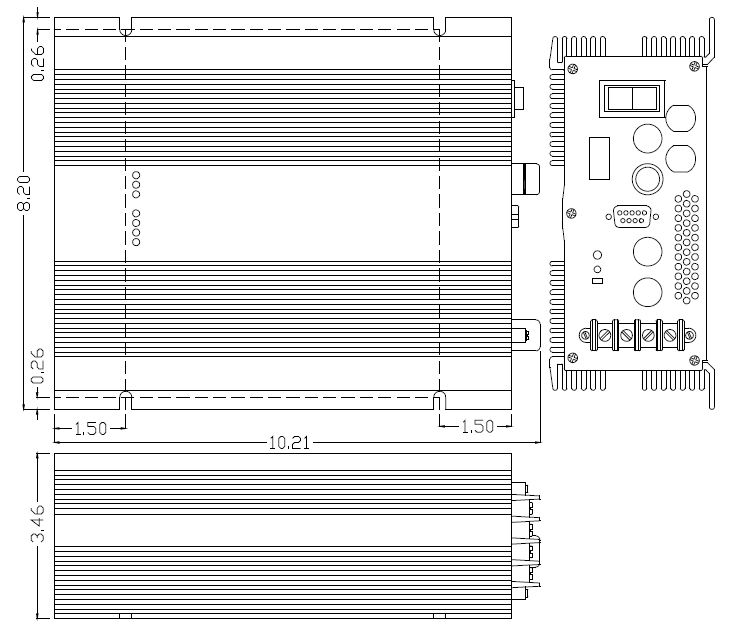

Click Here for Drawing
|
| Weight |
1.1 Kg (2.4
lbs) |
| Audible Noise |
None |
| Cooling |
Convection, no fan |
| Warranty |
3 years |
1 Year |
1 Year |
Advantages:
Heavy Duty High Current Switchmode
DC/DC Converters.
High
efficiency.
Excellent line and load
regulation.
Wide input voltage range suitable
for 12 volt automotive and vehicle
systems. |
