Custom design and manufacture of state-of-the-art battery chargers, UPS, and power supplies for
OEMs in a hurry!
For Retail Sales Click Here.
NOTE: The Inverters below have a minimum order 200 pieces. Samples available. Prices based on
quantity quoted, other quantities quoted on request. Prices subject to change, Terms cash with order, FOB Factory. Other terms
quoted upon request.
| PST-IB350W |
DC 12V |
DC 24V |
| Output power |
350W continuous
800W for surge output |
| Input voltage |
DC 10.5V~15V |
DC 21.5V~30V |
| Output voltage |
AC 110V, 220V, 230V or 240V |
| Output voltage regulation |
± 10% |
| Output wave form |
Modified sine wave |
| Output frequency |
50Hz or 60Hz ± 1% |
| Battery low alarm |
11V ± 1V |
22V ± 1V |
| Battery low shutdown |
10.5V ± 1V |
21.5V ± 1V |
| Standby current |
0.65A max. |
0.3A max. |
| Efficiency |
90% max. |
| Thermal protect |
60 ± 10 Deg C |
| Cooling |
By fan |
| Protections |
Output short (by fuse)
Battery low alarm
Battery
low shutdown
Battery polarity reverse (by fuse)
Over load
Over temperature |
| Fuse |
35A X 1 pc |
20A X 1 pc |
| AC output outlet |
Two AC outlets (USA socket) One AC outlet (the others) |
| Transfer time |
AC line to Inverter 4ms
Inverter toAC line 2s |
| Dimension (L X W X H) |
185 X 173 X 65 mm |
| Weight |
2.1 kgs., 4.6 lbs (approx.) |
Advantages:
 Inexpensive inverter with relatively light weight for power
supplied.
Protects battery from overdischarge damage.
Alarm sounds some time before it cuts out due to low battery. How
long this is depends on your battery capacity.
Low cost. $37.50
in quantities of 5000. Minimum order 200 pieces. Samples available. |

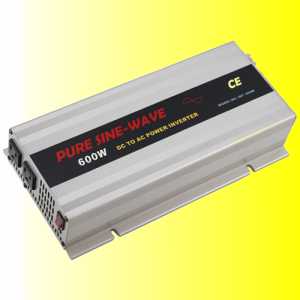

Pure Sine Wave Inverters In
Stock for retail sales, click here
