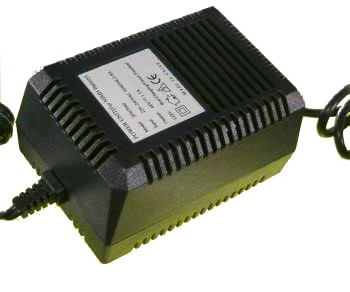

24 Volt lead-acid battery charger 1.3 Amp for SLA, and VRLA batteries

PST-198-1

ITEM

UNIT

SPECIFICATION

REMARK

INPUT

Rating Input Voltage

V ac

120Vac 50/60Hz

Max. input power

Watts

72 W

OUTPUT

Rating output voltage

V dc

30V

Output voltage range

V dc

20VDC ~ 30VDC

Suitable with Battery type

24V 1~50 Ah VRLA Batteries

Charging current typical

Amps

1.3A

Typical charging time

hour

12 hours for a 15AH battery

Battery detect voltage

Charger does not need to detect a battery, it will start charging immediately

Charge finish condition

V>29V and I<0.5A, the green light turns on and float voltage stage is started

Float Charge

Float charge voltage is 27.9 volts

LED color

Red: charging

Green: finish/idle

Red/Green flashing. The battery is accepting between 300 and 400 mA

Red blinking. The charger thinks a battery is connected which is taking little current. Leave on the battery for up to a week to see if the battery can be revived.

Output protect

Over current protection at about 3.7 amps

Environment

Cooling

Natural convection, no fan

Mechanical

Weight

g

1.2 kg, 2.7 lbs

Size

mm

129X91X68 mm

5.1 x 3.6 x 2.7 inches

Casing only

Connectors

5.5 x 2.5 mm Barrel connector

Max. temperature rise

°C

< 40 on casing

At any line and Max. Load
