Custom Ultrathin Lithium Polymer Batteries from PowerStream Home: battery chargers, power supplies, dc to dc converters, custom, semi-custom and off-the-shelf
ultrathin lithium ion batteries Cells as thin as 500 microns, and bendable!

Batteries, Chargers, and Power Supplies, Custom and off-the-shelf.

ultrathin lithium polymer battery Click here for Engineering Resources

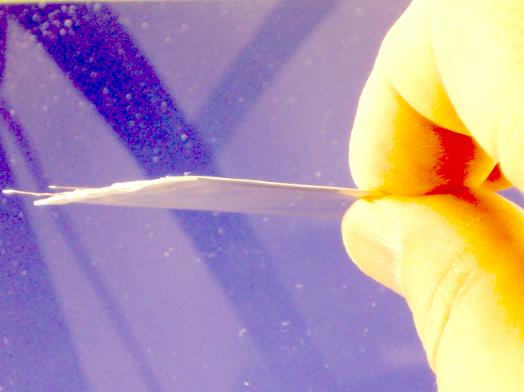

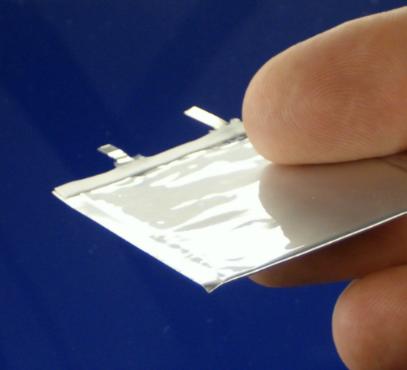

PowerStream has been working with a team of engineers in China to develop the thinnest possible lithium polymer batteries. We can now offer design engineers batteries of 1.0 mm to 0.5 mm thick. These cells should be useful for smart cards, RFID tags and other applications that require energy storage in a very thin battery.

Lithium ion cells are used in a wide variety of portable equipment and instruments. Lithium polymer cells have a better form factor than cylindrical cells for a variety of applications, such as cell phones, PDAs, cameras. These cells are high-quality Chinese cells, made in an ISO certified environment. PowerStream has qualified this factory as being one of the premier factories for lithium polymer cells. Not exactly paper thin, but as thin as we know how!

Though these cells have small capacities they are about the same as coin and button cells and have a wide range of applications. There are microcontrollers that draw less than 1 microamp, such as the TI MSP430 in standby mode, so a 50 mAH battery could run these for 2 years between charges.

Flat batteries can be used for military, sensors, tags, and cards. At about 2 mAH per square cm these, and with power levels at 10 mA per square cm.

Since these are not thin-film batteries they are available now, have a flexible substrate, and can generate much higher powers if need be. They use a solid-electrolyte technology that minimizes or eliminates any free liquid. They do not have to be kept flat. The 0.5 mm cells can be flexed or bent into a cylinder, into a hat band, belt, etc.

Features:
1. High operating voltage(3.6V)
2. Energy density is high,
3. No memory effect
4. Self-discharge is less than 10% per month
5. Charge/discharge cycle characteristics are excellent
6. Safety characteristics are excellent
7. Processing temperatures for these cells is 100°C for less than 60 seconds, 120°C for less than 20 seconds and 140°C for less than 5 seconds.
8. End-of-discharge voltage cut off 2.8 volts.
9. Temperature range of charging is 0-45°C, discharging is -20 to +60°C


Ultrathin Lithium Polymer Cells.

Note at this time we have a few standard products (see the table with the "add to cart" buttons below. Most customers at this time are using cells made to their specifications and will require a tooling charge and minimum order of 100 pieces. Below are listed typical parameters for such cells.

We have a small quantity of out-of-spec PGEB0052081 and PGE0054253 cells for electrical testing, but they are not available for production without paying a tooling charge.
Examples of batteries that we have made
Thickness
Nominal Voltage
(V)
Theoretical Capacity
(mAh)
Dimensions
T x W x H mm
Weight
(grams)
Available off-the-shelf?
PGE014461 0.85-1 mm 3.7 V 200 mAH 1.0 x 44 x 61 mm   Yes
PGE0053040 0.5-0.55 mm 3.7 V 21 mAH 0.6 x 30 x 50 mm   No
PGE0054253 0.5-0.55 mm 3.7 V 60 mAH 0.6 x 42 x 53 mm 2.3 gm No
PGE0054050 0.5-0.55 mm 3.7 V 55 mAH 0.6 x 40 x 50 mm   No
PGEB0053642 0.5-0.55 mm 3.7 V 40 mAH 0.6 x 36 x 42 mm   No
PGEB0052081 0.5-0.55 mm 3.7 V 40 mAH 0.6 x 81 x 20 mm 1.7 gm Yes
PGEB0065046 0.6 mm 3.7 V 50 mAH 0.6 x 50 x 46   No
PGEB0053559** 0.55 mm 3.7 V 65 mAH 0.5 x 35 x 59 mm   Yes

** Samples of the following cells are available
PGEB0052081 40 mAH Sample $10.00 each
PGEB0053559 65 mAH Sample $10 each

PGEB014461 200 mAH Sample $10 each

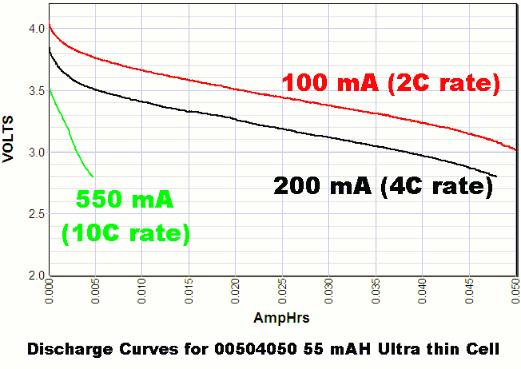

Discharge curves for ultra-thin batteries

These are great cells. They are designed for low current discharge, but the above curve shows what they do at high current discharge rates, up to 10C.
Note the following features:
  • At 100 mA (about 2C) you still get 90% of the rated capacity, terminating at 3 volts
  • At 200 mA (about 4C) you get 86% of the rated capacity terminating at 2.8 volts
  • The voltage stays high even at these extreme currents
  • Even at half an amp (10C) there is enough energy for over 3300 pulses, 100 mSec each.

Discharge curves for PGEB014461
