120VAC 400Hz to 120VAC 60hz frequency converter

120VAC 400Hz to 120VAC 60Hz frequency converter, modified sine wave. 50Hz available

Industrial grade 400Hz to 60Hz single phase frequency converter.

 More special purpose inverters including 1-phase to 3-phase, DC to 3-phase, and industrial, military and marine grade inverters
More special purpose inverters including 1-phase to 3-phase, DC to 3-phase, and industrial, COTS and marine grade inverters
  • Pure sine wave 1-phase 60Hz 120V output exactly duplicates mains power.
  • Wide operationg temperature range, -20°C to +60°C.
  • RF Emission free
  • Electronic overload protection
  • Heavy Duty, Rugged and reliable for years of safe operation
  • Input circuit breaker
  • Ultra quiet with no electrical interference.
  • Input and output indicators.

3000 watt 3 phase AC/AC phase converters 1250VA frequency converter
400 hertz to 60 hertz frequency converters, 1250VA
Part Number
and Price		 PSFQ-1K400
Allow up to 7-8 Weeks for shipping
$1750
Output Voltage 105-132 VAC 60 Hz, single phase (call for 50 Hz version)
Input Voltage 105-132 VAC 360-500 Hz, single phase
Output current 10 Amps continuous, 13 Amp current limit
EMI Meets EN55022 Class B (typical)
Operating Temperature Range -20°C to +60°C
Humidity 5-95% non-condensing
Efficiency >90 % at full load
Duty Cycle Continuous power 24 hours per day
Output wave form Modified sine wave
Cooling Convection cooling
Over-temperature shut down After prolonged operation at high ambient temperature the unit may shut down by means of a thermal cutout switch. The unit will automatically come back on when the chassis cools down, typically within 5 minutes.
On-off switch Fast acting magnetic breaker
Input Connections Terminal block
Output Connections Terminal block
Protection Current Limiting, Short Circuit , Spike and noise, , Over Load, circuit breaker, thermal shutdown with automatic recovery
Dimensions 4.5H x 8.5W x 21.75L (inches)
Cooling Convection cooling, no fan
Weight 16 pounds
Country of Origin Made in USA, NAFTA eligible
Warranty* 1 year *Warranty depends on installation within good engineering practice.

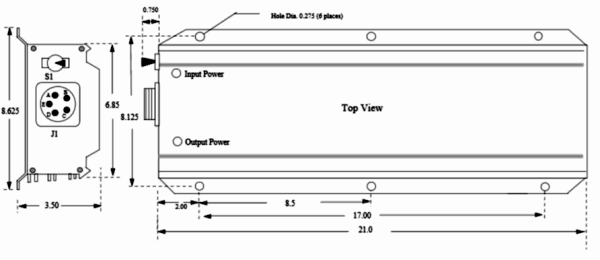

dimensioned drawing of the 400hz to 60hz converter
