1000 Watt 400Hz frequency converter power supply and , universal AC input, 110V 400Hz pure sine wave output |
More 400 Hz frequency converters, power supplies and inverters |
|||

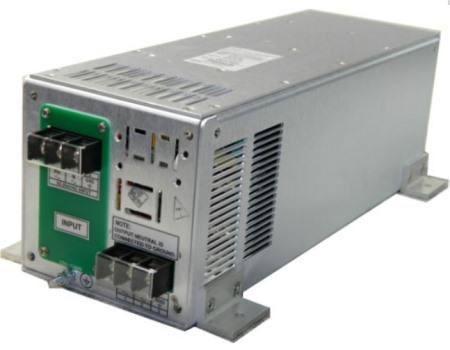

 This shows the screw terminal version, it is also
available with appropriate AC output sockets.The range of AC input is 95-264VAC, 47-63Hz (400 Hz input available)
|
||||
| 1000 watt AC/AC power supply and frequency converter | 115VAC to 230 VAC 50 Hz | |
| Part Number and Price | FCA1000-115.60-230.50-T8486 $2448  Allow up to 8-12 weeks for manufacturing |
|
| Country of Origin | Canada, NAFTA eligible | |
| Input Voltage | 95-264VAC 115VAC, 220VAC, 240VAC nominal |
|
| Input Frequency | 47-63 Hertz 50Hz, 60Hz nominal 400Hz input on request |
|
| Output Voltage | 230VAC | |
| Output Frequency | 50Hz pure sine wave | |
| Max Output Current(s) | 4.3 Amps continuous | |
| Max Output Power | 1kVA | |
| Load Crest Factor | 2 at 90% load | |
| Output current limit? | Current limiting with short circuit protection. At 1200VA unit enters hiccup mode until overload is removed. Thermal shutdown with automatic recovery in case of insufficient cooling. | |
| Output overvoltage protection | by internal voltage limiting | |
| Operating Temperature Range | 0°C to +50°C | |
| Humidity | 5-95% non-condensing | |
| Efficiency | 85% at full load typical | |
| Duty Cycle | Continuous power 24 hours per day | |
| Output Distortion | <5% total harmonic distortion at full load | |
| Line Regulation zero load to full load | < ±5% | |
| Load regulation zero load to full load | < ±5% | |
| Isolation | 2250VDC input to
chassis 3000VDC input to output 2250VDC output to chassis Floating output |
|
| Input and output connections | Input: 6-pole terminal block with 3/8"
spacing Output: 12-pole terminal block. AC sockets available. |
|
| Protection | Inrush current limiting, Varistors, Internal fuse, Undervoltage input, Over Voltage , Over Current, Short Circuit , Over Load, thermal shutdown with automatic recovery | |
| Dimensions | 3U2: 132 x 132 x
407mm 5.2" x 5.2" x 16" |
|
| Weight | 13 lbs, 6 kg | |
| Agency compliance | CE marked
Designed to meet C22.2 No. 107.1 - 01, UL 458 and EN60950-1 |
|
| Cooling | Internal fan | |
| Thermal shutdown | Automatic recovery | |
| MTBF | 120,000 hours at 45°C | |
| Shock/Vibration | IEC 61373 Cat 1 A & B | |
| Connections | Input: 3-pole terminal
block with 1/2 inch spacing Output: 3-pole terminal block with 1/2 inch spacing |
|
| Warranty* | 2 years *Warranty depends on installation within good engineering practice. | |
| Data sheet | FCA1000-115.60-115.400-T8486 data sheet | |
|
|
|
| |||||||||
