18VAC 180 watt AC transformer power supply for grow lights, hydroponic, model railroad, fountain and water resistant use. Price reduced to $9!

DC UPS 12 and 24 Volt Battery Backup Power Supply
Model   Qty 1 - 9 Qty 10 - 49 Qty 50-99 Qty 100-199 Qty 200+
PST-MHPO-1801000 18 volt, 180VA with 110VAC input $9.00
1 left
PST-MHPO-180277 18 volt, 180VA with 277VAC input $9.00
4 left

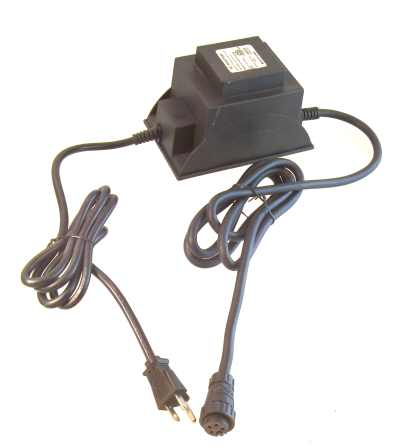

This is a simple 18V transformer for possible wet use. It is appropriate for DCC (Digital Command Control) model railroad equipment, though the connector must be changed.
Specifications   115VAC version 277VAC version
Input Voltage 110VAC-120VAC 264-289VAC
Frequency 60Hz 60Hz
Current
Full load
1.7A nominal 0.85A nominal
  Surge current 40A nominal 20A nominal
Output Voltage 18VAC 18VAC
  Current 10A 10A
  Regulation ±10% due to mains
fluctuations
±10%
Temperature Storage -20 to +85°C -20 to +85°C
  Operating 0 to 45°C 0 to 45°C
Weight   7.2 lb 7.2 lb
Size Base 6.2 x 3.9 inches 6.2 x 3.9 inches
  Height 4 inches 4 inches
Cord length Input 55 inches 55 inches
  Output 70 inches 70 inches
Input cable Gauge 3x18AWG 3x 18AWG
Output cable Gauge 2x 1.5 mm2 2x 1.5mm2
Mate for the output
connector is available,
but not in stock
AO Hua water
IP67/IP68
M22 4PIN waterproof connector M22 4PIN waterproof connector

Low voltage IP67 connectorplugs on the 18VAC transformer
18VAC grlow lights
  FD-G4-CW1 800008-00G4S012CL3-AI
  PAR36-6-30-35
  MR11



Lionel 180-Watt PowerHouse Power Supply replacement 6-22983, though the connector must be changed
