48V DC 750 mA Switchmode Power Supply with cUL, CE and TUV approvals, only 20 mm thick

48VDC 36Watt 750mA switchmode power supply

Universal 36watt AC input 48 volt or -48 volt 750mA power supply, fully isolated.

36VDC and 48VDC switchmode power suppliesFor more 48 volt products from PowerStream

.This is a small, extra thin switchmode power supply with double insulation , 48 volts, 0.75 Amps output, 36W with cUL, TUV, and CE and universal input.

Prices
Quantity 1-10 11-50 51-100 100+

PST-AC48075 48 volt 750 mA switching power supply, desktop style. includes US 2 prong AC power cord

No longer available, please consider the PST-AC4805
Part Number PST-AC48075 48 volt 750 mA (TR36A-48) switchmode power supply
Parameter Requirement
Input Voltage 90-264 VAC, 47-63 Hz
Output 48 Volts DC nominal (48V)
Output Current 0-0.75 Amps
Ripple/noise 1% p-p
Setpoint voltage accuracy ±2%
Line Regulation ±1%
Load Regulation ±2%
Switching Frequency 50kHz to 70kHz nominal
Efficiency 83% typical
Inrush Current 60A max at 240VAC input
Input Frequency 47-63 Hz
Conducted EMI CISPR/FCC Class B, EN55022 class B
Isolation Input to output 4000VDC
Leakage Current 250 microamps max
Holdup time 8 milliseconds typical at 115VAC input
Short circuit protection Yes, hiccough mode

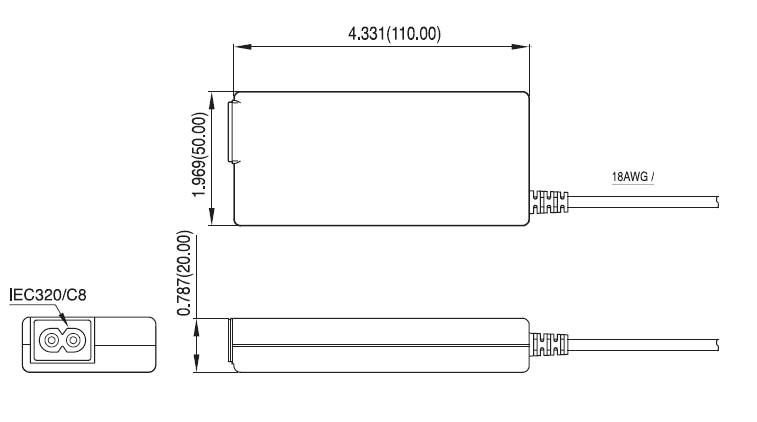

Size 110x50x20mm (4.3 x2x0.75 inches)
Weight 0.45 lb, 7.3 oz, 207 grams
Input 2-prong IEC 60320-1 C8 inlet that takes the C7 cord
Input cord USA 6 foot C7 cord included
Output
6 foot cord with 10 pin wire crimp MOLEX Mini-Fit receptacle part number 39-01-2100. Mating connector MOLEX 39-01-3109 or 39-01-3103 (free hanging cable mount) Other PCB mount sockets are available from Molex
molex recepticle 10 socket molex mini-fit jr
Output pinout Pin 5 positive, Pin 10 negative.
Temperature 0° to 40° C Operating, -20 to +85°C storage
Cooling Natural convection, no fan
Agency Approvals UL, FCC, cUL, TUV, CE double insulated, indoor use, ITE Power Supply

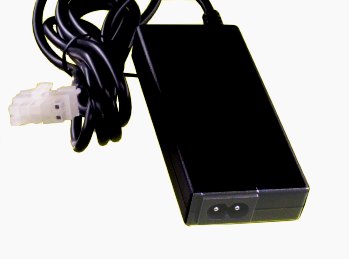

48V switchmode power supply 750 mA 36 watts

Advantages:

OEM Battery Chargers 48 Volts DC output universal AC input switchmode power supply.

OEM Battery Chargers High efficiency power supply for telecom use.

OEM Power Supplies Excellent line and load regulation.

Universal Power Input OEM Power Supplies and OEM Battery Chargers Wide input voltage range.
