AC/DC Transformer Adapters 18 to 30 Watt, JOD-57U style

Custom design and manufacture of state-of-the-art battery chargers, UPS, and power supplies for OEMs in a hurry!



For more power supplies click here
How to Design with Wall Mount Power Supplies These transformer based power supplies are only available in quantities of 1000+ pieces per shipment. Call or write for a quote.

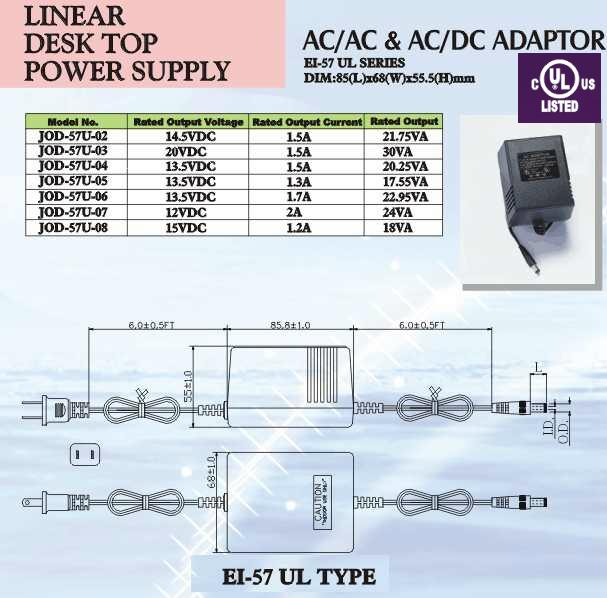

Dimensions of 18 to 30 Watt Transformer Desk Mount Power Supply

Model No. Rated Output Voltage Rated Output Current Rated Output
JOD-57U-02 14.5VDC 1.5A 21.75VA
JOD-57U-03 20VDC 1.5A 30VA
JOD-57U-04 13.5VDC 1.5A 20.25VA
JOD-57U-05 13.5VDC 1.3A 17.55VA
JOD-57U-06 13.5VDC 1.7A 22.95VA
JOD-57U-07 12VDC 2A 24VA
JOD-57U-08 15VDC 1.2A 18VA
AC /DC and AC/AC Adpaters 6-25 Watt nominal, Wall Mount


Quantities above 500 pieces FOB China

Connector Types
I. D O. D Long Straight Right Angle Type
No.
1 2.1 5.5 V V Barrel
2 2.5 5.5 V V Barrel
3   3.5   V Barrel
4 2.1 5.0 V V Barrel
5 2.5 5.0 V V Barrel
6 1.3 3.5 V V Barrel
7 1.0 3.5 V V Barrel
8 1.0 3.8 V V Barrel
9 0.7 2.35 9.5 V V New EIAJ Female
10 1.7 4.0 9.5 V V New EIAJ Female
11 1.7 4.75 9.5 V V New EIAJ Female
12 1.0 5.5 9.5 V V New EIAJ Female
13 1.4 6.5 9.5 V V New EIAJ Female

These power supplies are low cost transformer based, unregulated power supplies. They are made to fullfil the need for low cost DC power. Wholesale power supplies can often be obtained in smaller quantities. Call for your needs.

Voltages in the above table:
13.5 VDC 14.5 VDC 15 VDC
20 VDC Volts AC Volts DC
ISO 9001 Certified FactoryUL listed linear desktop power supplies from PowerStream, AC-DC and AC-AC
