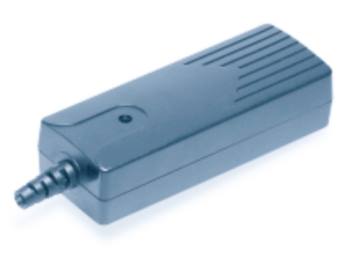

ED1075 75 watt car-style DC/DC converter 12 volt to 15V, 16V, 18V, 19V, 24 volt fixed output

DC Source Battery Charger

High power 12 volt input DC/DC converters at low cost. Suitable for applications requiring high reliability, high efficiency or light weight.

These are Boost Converters to increase the voltage from 12VDC to up to 24VDC.

Model Number ED1075 DC to DC Converter
Page down for prices and to pick output connector and DC output voltage
Input Voltage Range 10 VDC to 16 VDC (see list below)
Peak Output Power 75 Watts (continuous)
Peak input current 7 Amps
Minimum load 0 Amps
Peak Output Current 5 Amps or 75Watts, whichever is lower power
Continuous Output Power 75 Watts
Output Voltage 15-24 volts DC fixed at factory
see table below
Efficiency >90%
Operating Temperature 0 to 40°C
Protections Input voltage protection
Over current protection
Over voltage protection
Over temperature protection
Short circuit protection
Storage Temperature -20 to 80°C
Isolation Although the output is isolated from noise, spikes, and voltage sags on the input, the input and output grounds are common, so this dc to dc converter is not usable in positive ground cars without totally isolating the equipment being powered from the frame of the car.
Burn in 100% burn in
MTBF >50,000 hours
Indicator LED power-on
No-Load Overhead
Line Regulation ± 2%
Load Regulation ± 5%
Ripple and noise 120 mVp-p
Efficiency >90%
Dimensions 105 x 40 x 26.5 mm
4.3 x 1.6 x 1 inch
Weight 220 g, 8 oz
Certifications e1 Mark, CE
EMI EN55022
EMS EN55024
DC Input connector Cigarette lighter plug with UL1185 DC cable
DC Output connector 18AWG cable UL1185 rated, 120 cm long (47 inches)
see table below for plug option

Output Voltage Connector Style Part Number Price 1-10 Price Quantity 11-100 Price Quantity 101+
15V 6.3 x 3.0 mm barrel ED1075-51 $79.30
$74.20 $65.00
15V 6.3 x 3.0 mm barrel ED1075-56 $79.30
$74.20 $65.00
15V stripped and tinned wires ED1075-54 $79.30
$74.20 $65.00
15V 5.5 x 2.1 barrel ED1075-57 $79.30
$74.20 $65.00
15V 6.5 mm center pin ED1075-61 $79.30
$74.20 $65.00
15V 5.5x2.1 mm barrel ED1075-69 $79.30
$74.20 $65.00
15V D01PB406NT ED1075-76 $79.30
$74.20 $65.00
15V stripped and tinned wires ED1075-81 $79.30
$74.20 $65.00
16V stripped and tinned wires ED1075-55 $79.30
$74.20 $65.00
16V 5.5x2.1 mm barrel ED1075-58 $79.30
$74.20 $65.00
16V 6.5 x 1.4 mm center pin ED1075-59 $79.30
$74.20 $65.00
16V 5.5 x 2.5 mm barrel ED1075-75 $79.30
$74.20 $65.00
18V 5.5 x 2.5 mm barrel ED1075-64 $79.30
$74.20 $65.00
19V 5.5 x 2.5 mm barrel ED1075-50 $79.30
add_to_cart.gif view_cart.gif
$74.20 $65.00
19V 5.5 x 2.5 mm barrel ED1075-60 $79.30
$74.20 $65.00
19V HRS 3 Pin ED1075-62 $79.30
$74.20 $65.00
19V 6.5 mm center pin ED1075-63 $79.30
$74.20 $65.00
19V 4.75 x 1.7 mm barrel ED1075-65 $79.30
$74.20 $65.00
19V 5.5 x 1.0 mm barrel ED1075-66 $79.30
$74.20 $65.00
19V 5.5x2.1 mm barrel ED1075-68 $79.30
$74.20 $65.00
19V stripped and tinned wires ED1075-70 $79.30
$74.20 $65.00
19V 3P HRS flat ED1075-71 $79.30
$74.20 $65.00
19V 5.5 x 3.0 mm barrel ED1075-73 $79.30
$74.20 $65.00
19V 5.5 x 1.7 mm barrel ED1075-74 $79.30
$74.20 $65.00
20V 5.5 x 2.5 mm barrel ED1075-52 $79.30
$74.20 $65.00
24V stripped and tinned wires ED1075-67 $79.30
$74.20 $65.00
24V small apple ED1075-72 $79.30
$74.20 $65.00
24V 5.5x2.1 mm barrel center positive ED1075-24V-5.5x2.1 $79.30
$74.20 $65.00
  other connectors and voltages available, please call ED1075-??

Advantages:

OEM Battery Chargers Inexpensive high current DC/DC converter regulates and stabilizes voltage in automotive applications.

OEM Battery Chargers Also can be used to provide regulated voltage from a sealed lead acid battery--excellent for special purpose UPS DC battery backups.

OEM Power Supplies High efficiency >85%.
