External Desk Top NiCad/Nickel Metal Hydride Battery Pack Chargers (6 to 10 cell) with Universal 100-240 VAC Input

4 amp, 16-24 cell battery charger
More NiMH and NiCad Chargers
Wall mount chargers 3 cell to 12 cell versions
Wall Mount 1 Amp Consumer style NiMH/NiCad Chargers
NiCad NiMH Battery Pack Charger 4-12 cell packs
1 to 1.5 amp off-the-shelf charger for 4 to 12 cell NiMH and NiCad batteries

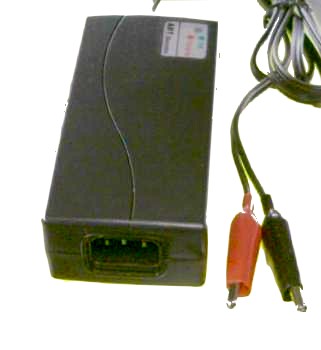

Desktop Charger for NiCad and NiMH Packs, 10 cellsc18 socket
Lowest cost quality charger for NiMH and NiCad batteries. They now have the 2-prong C8 socket.
This a -delta V termination fast battery charger with a microprocessor controlled charge and sense LED display and preset time-out. 90-240 VAC input, with an IEC AC cord connector for easy country adaptation. Universal desk-top AC charger charges packs containing 8, 9 or 10 cells without the need of a thermistor. Full specifications are given below.
Quantity 1-10 11-50 51-100 101-999
PST-3PN3020MP-A
includes a 3 prong AC cord
12 volt 700 mA battery charger for lead acid batteies with barrel plug output
For charging 6, 7, 8, 9, or 10 cell packs $25.95
$23.50 $18.95 $17.50
PST-3PN3020MP-B
includes a 3 prong AC cord
Barrel connector version
barrel connector
For charging 6, 7, 8, 9, or 10 cell packs $25.95
$23.50 $18.95 $17.50
plugsetPST-WX12 ---- Output adapter barrel plug kit Barrel Plug Adapters for PST-3PN3020MP-B7 connector kit (see list below) $7.00
Call Call Call
General Information
Model PST-3PN3020 formerly PST-3PX0
Name 6, 7, 8,9 or 10 Cell Ni-Cd/Ni-MH Battery Charger with -dV Detection
Type Battery Pack Charger for R/C, Robots, instruments
ROHS ROHS available on special order

Technical Information
Rated input voltage 100-240 VAC, 50/60 Hz
No. of batteries (6 cell, 7 cell) 8 cell, 9 cell or 10 cell battery packs
10 cells 12 volts nominal
9 cells 10.8 volts nominal
8 cells 9.6 volts nominal
7 cells 8.4 volts nominal PST-3PN3020MP only
6 cells 7.2 volts nominal PST-3PN3020MP only
Battery size 1.2 AH to 14 AH
Charging current 1.8 amps or 1800 mA, trickle less than 250 mA
(0.9 amps or 1.8 Amps, switch selectable PST-3PN3020MP only)
Charger type Ni-Cd/Ni-MH Battery Charger
Application R/C Models, robots, instruments
Time-out 8 hours if the charger does not detect a full charge
Charging supervision -dV, -5mV per cell
Input Frequency 50-60 Hz
Battery type Ni-Cd/Ni-MH Battery
Style Desktop
Output power 30W maximum
Output voltage 16 volts nominal
Output options included Alligator clips or 5.5 mm OD x 2.1 mm ID barrel More barrel connectors available separately, see below
Weight 250 grams, 0.25 kg, 0.55 pounds, 9 oz.
Cooling Natural convection, no fan
Efficiency >75%
Size 117 x 61 x 37 mm, 4.6 x 2.4 x 1.4 inches
Environment -10°C to +40°C operating, -40°C to +70°C storage
Temperature rise <40°C rise on case under any line voltage and maximum rated load
Vibration, Impact 5mm, 50Hz, 600 Seconds, 1 meter drop 3 times
Protections Reverse Polarity, Short circuit protection
Safety UL listed under specification UL1310 (ANSI 1310), Class 2 battery charger. CE marked, designed to ED60950, EN55022B
MTBF 30,000 hours by MIL-STD calculation
HiPot, ESD Hi-Pot 3000 V, 1 minute, ESD 8000V
LED Indications Power on, but no battery connected Black
Charging Red
Charged/Trickle Charging Green
Important note: Due to the erratic charge behavior of NiMH and NiCad batteries when first placed on charge there is a delay of up to 15 minutes before an accurate charge termination can be read. In worst case a battery can be taken off the charger and reattached, and charged for 15 minutes before the "charged" light comes on again. In addition, new packs should be charged and discharged several times before they "settle in" to a predictable charging condition.
Twelve optional DC Plugs slip over the 5.5 x 2.1 mm connector if desired.
plugset
  • 2.35 OD x 0.7 ID Barrel
  • 3.0 OD x 1.1 ID Barrel
  • 3.5 OD x 1.35 ID Barrel
  • 4.0 OD x 1.7 ID Barrel
  • 4.75 mm OD x 1.75 mm ID Barrel EIAJ-03
  • 5.0 mm OD x 3.5 mm ID with center pin
  • 5.5 mm OD x 1.5 mm ID type 2 Barrel
  • 5.5 mm OD x 2.5 mm ID Barrel
  • 6.3 OD x 3.0 ID center pin Barrel
  • 6.0 OD x 4.4 ID center pin Barrel
  • 7.4 mm OD x 5.0 center pin ID Barrel
  • 7.9 OD x 5.6 ID center pin Barrel

Advantages:

OEM Battery Chargers Inexpensive desk top Nicad and NiMH Battery Charger with peak charge control circuit, universal AC input version.

OEM Power Supplies Single LED changes color to indicate state of charge.
