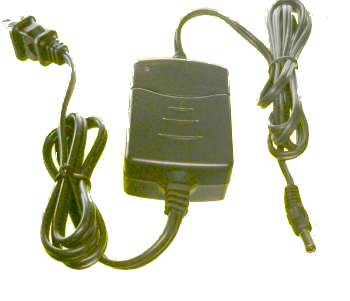

| Battery Charger
Specifications |
| Model |
PST-3P10-12V (3PA1015, 3P10-A1015) |
| Name |
12 Volt charger for lead acid, sealed lead acid,
etc. |
| Type |
Battery Pack Charger for R/C, Robots,
instruments |
| ROHS |
ROHS available on special order |
|
| |
| Battery Charger
Technical Information |
| Rated input voltage |
90-264 VAC, 50/60 Hz |
| Battery size |
12 volt nominal SLA, VRLA, Gel, AGM,
or flooded |
| Input Frequency |
50-60 Hz |
| 6 cells |
12 volts
nominal |
| Battery size |
0.7 AH to 14+ AH |
| Charging current |
0.8 amps or 800 mA (replaced the
750mA version) |
| Charger type |
Lead Acid Chemistry |
| Charging algorithm |
Constant current/constant
voltage/float |
| Stage 1 constant current 800 mA
± 100 mA |
| --------------- For Stage 1 to start
battery voltage must be above 4V |
| Stage 2 constant voltage 14.75 volts
± 0.25 volts |
| Stage 3 float charge 13.75
±0.25 volts |
| "Charged" light turns on and float
charge starts when the charge current is below 0.20 amps ±0.05 amps when
the battery charge voltage is above 14 volts. |
| Style |
Desktop |
| Output power |
14W maximum |
| Output voltage |
14.75 volts maximum |
| Output options included |
Sturdy 20AWG wires, rated to
80°C
Alligator clips or 5.5 mm OD x 2.1 mm ID barrel
More barrel connectors available separately, see
below |
| Weight |
150 grams, 0.15 kg, 0.33 pounds, 5
oz. |
| Cooling |
Natural convection, no fan |
| Efficiency |
>75% |
| Size |
75 x 51 x 28 mm, 3 x 2 x 1
inches |
| Environment |
-10°C to +40°C operating,
-40°C to +70°C storage |
| Temperature rise |
<40°C rise on case under any
line voltage and maximum rated load |
| Vibration, Impact |
5mm, 50Hz, 600 Seconds, 1 meter drop
3 times |
| Protections |
Reverse Polarity, Short circuit
protection |
| Safety |
UL, cUL, CE marked, designed to
ED60950, EN55022B |
| MTBF |
30,000 hours by MIL-STD
calculation |
| HiPot, ESD |
Hi-Pot 3000 V, 1 minute ESD
8000V |
| LED Indications |
Power on, but no battery connected |
Green |
| Charging |
Red |
| Finishing Charge |
Green Flashing |
| |
Charged/Float Charging |
Green (may be dim Green) |
| |
Reverse polarity or short circuit |
Red and Green Flashing
Alternately |
|
|
Twelve optional DC Plugs slip over
the 5.5 x 2.1 mm connector if desired. |
 |
- 2.35 OD x 0.7 ID Barrel
- 3.0 OD x 1.1 ID Barrel
- 3.5 OD x 1.35 ID Barrel
- 4.0 OD x 1.7 ID Barrel
- 4.75 mm OD x 1.75 mm ID Barrel EIAJ-03
- 5.0 mm OD x 3.5 mm ID with center pin
- 5.5 mm OD x 1.5 mm ID type 2 Barrel
- 5.5 mm OD x 2.5 mm ID Barrel
- 6.3 OD x 3.0 ID center pin Barrel
- 6.0 OD x 4.4 ID center pin Barrel
- 7.4 mm OD x 5.0 center pin ID Barrel
- 7.9 OD x 5.6 ID center pin Barrel
|
|
|
|
PowerStream's Raptor Creative division awarded best of show at CES by HotHardware
Much lighter and smaller
than transformer based chargers
