100 Watt DC/DC Converter module with 24VDC input and 28V output at 1/3 price

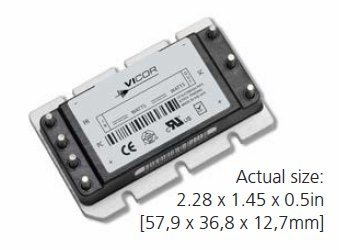

100 watt DC/DC converter module 28V

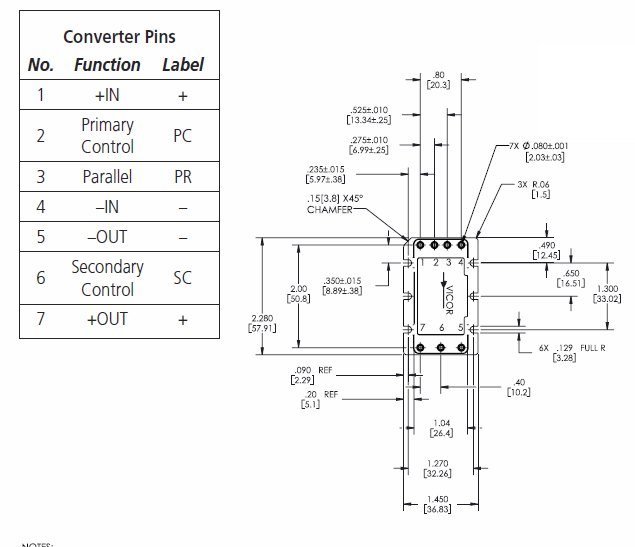

V24C28H100B3 pinout and dimensions
This dc to dc converter has the short leads for in-circuit board mounting. I other words it requires
a cutout the size of the module body in order for the leads to touch the board.

Isolated DC converter modules with 24V input and single 28V 100W output

V24C28H100B3 28V output 3.6A 100W   $100
Data Value
Input voltage 24V 18V to 36V
Output voltage 28V 3.57A 100 Watts
Setpoint accuracy ±1%
Voltage adjust ±10%
Line regulation ±0.2%
Load regulation ±0.5%
Ripple and noise 75mV p-p 100mV p-p for 12V output
Control pin Low = on, High = off High = 7.0V or higher
Temperature -40°C to 100°C operating -65°C to 125°C storage
Agency approval cURus, cTÜVus, CE UL60950-1, EN60950-1, CSA60950-1, IEC60950-1.
Weight 48g, 1.7 oz
Efficiency ~88% 75% l oad
Data Sheet Full data sheet here

OEM Battery Chargers Inexpensive fully isolated switchmode 24 volt to 28V DC/DC Converter brick

OEM Battery Chargers High efficiency: approximately 88%.

Universal Power Input OEM Power Supplies and OEM Battery Chargers Wide input voltage range 18VDC to 36VDC.
