15 Watt AC Adapters--Drawings and Dimensions

Custom design and manufacture of state-of-the-art battery chargers, UPS, and power supplies for OEMs in a hurry!

Style Picture Dimensions

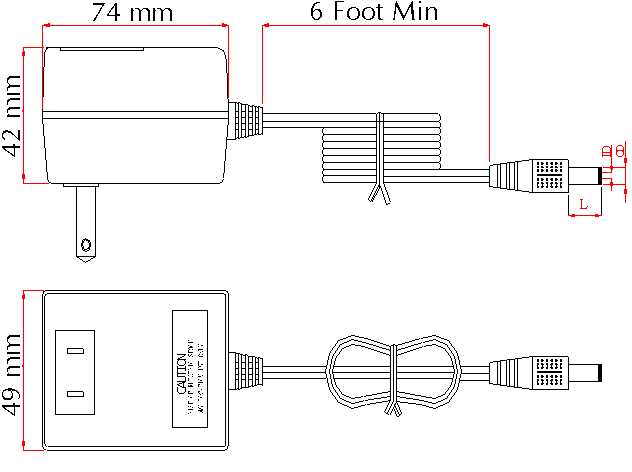

0Z Style
USA, Europe, UK, and Australia		 Switchmode 15 Watt Wall Mount Power Supply  Switchmode Wall Mount Power Supply Dimensions

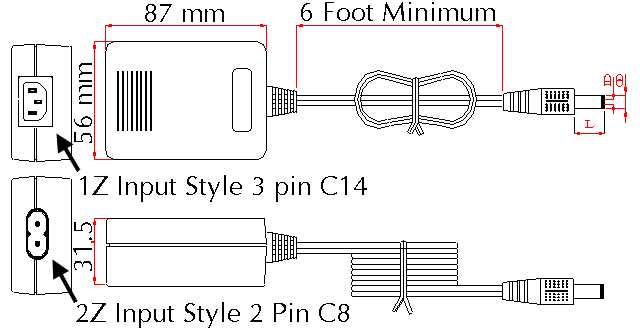

1Z and 2Z Style
USA, Europe, UK, and Australia		 Desk Mount Switching Power Supply 15 Watts

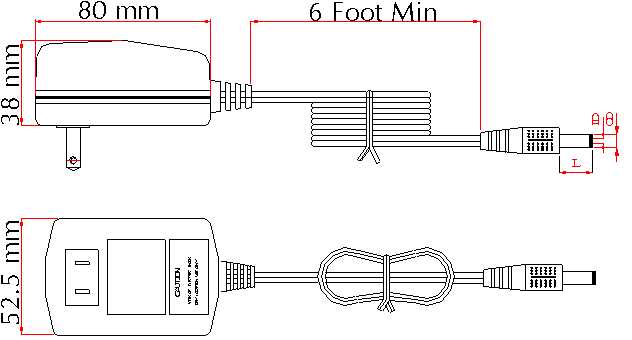

3Z Style USA, Europe, UK, and Australia Switching Wall Mount Style Switchmode Wall Mount Dimensions

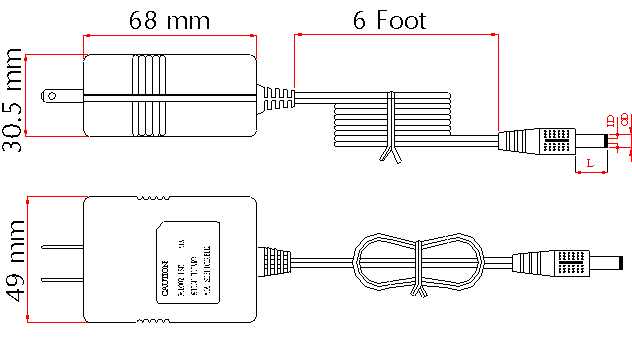

4Z Style USA, Europe Ultra Miniature Wall Mount Switchmode Power Supply Ultra Miniature Switching Wall Mount Power Supply Dimensions

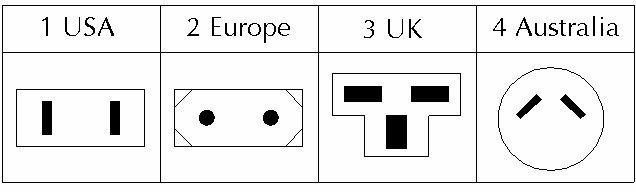

Available Plug Styles include USA, Australia, United Kingdom and Europe Styles
