5.0 Volt DC, 1600 mA switch mode slimline wall mount power supply

5.0V 2.7A, 8 watt low voltage switching power supply, 1.5 amps maximum

Wall plug Universal AC regulated switchmode 5.0 volt power supply, 1600 mA maximum, folding AC plug. The DC connector is 4.0 mm OD x 1.7 mm ID Center Positive

Click here for more 5V power supplies

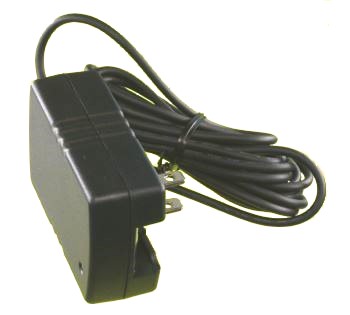

This is a high quality, switchmode regulated power supply with stable output, 8 watts continuous. It has a folding AC two-prong plug as shown. It is used on many digital cameras, including the Olympus cameras listed below.
Digipower part number ADC-RC.
PST-AC0516W
with 4mm OD x 1.7mm ID barrel connector
$9.20

Compatibility table:
Olympus Digital Camera Adapter C-50 Zoom Sylus 300 Stylus 400
Canon Digital Camera Adapter PowerShot A10 A20 A30
  Finepix F401 F402
Fujifilm Digital Camera Adapter   F410 F601
    S1 Pro S2 Pro
  Finepix 50i 1300
  1400 2300 2400
  2800 3800 4800
  4900 6800 6900
  MX Series 500 600
  700 1200 1700
  2700 2900 DX-10
Kodak Digital Camera Adapter LS Series 420 443
    663
Pentax Digital Camera Adapter Optico 330 330RS  430
  430RS
Ricoh Digital Camera Adapter Caplio RRI RDC Series 2
  2e 7 300
  300Z 4200 4300
  5000 5300 i500
  i700 i700G
Toshiba Digital Camera Adapter PDR Series T10 T-10
  T20 T-20 T30
  T-30 2300 3300
  3310 3320 4300
  M1 M3 M4
  M5 M11 M21
  M25 M60 M61
  M65 M70 M71
  M81



GENERAL SPECIFICATIONS 5.0VDC 1.6Amp Power Supply
Safety Compliance: UL, cUL, LPS, FCC, CE, TUV, double insulated, ITE
Size 50 mm x 26 mm x 77 mm, (2 x 1 x 3 inches) with prongs folded, not including output cord
Weight: 147 grams, 5.2 ounces
Cooling: Free air convection
Construction: Impact resistant thermo-plastic enclosure case
Temperature Range: -10 to 40°C
Storage Temperature -20°C to +84°C
Operating Humidity: 5-95% Relative Humidity
HiPot Withstand Voltage 2000V
INPUT SPECIFICATION
Input Voltage: Input Voltage: rating 100-240VAC
Input Connector: WM1 (U.S.2-blade) foldingas shown
Input Frequency: 50-60 Hz.
EMI: FCC
OUTPUT SPECIFICATION
Output Voltage: 5.0 Volts
Output Current: 1.6 Amps
Output Wattage: 8.25 Watts typical
Overload Protection (OLP) Fully protected against output overload or short circuit. OLP is set at about 120-150% of the rated continuous output, automatic recovery.
Output Connector: 4.0 mm OD x 1.7 mm ID Center Positive
(Japanese EIAJ-02 standard)
Output Cord 9 foot, coaxial 2 conductor 18 AWG, VW-1SC, TR64 90°C FT1
NOTES: (1) All measurements are at nominal input, full load, and +25°C unless otherwise specified.

OEM Battery Chargers Universal input switchmode power supply with fixed 5.0 volt output voltage.
