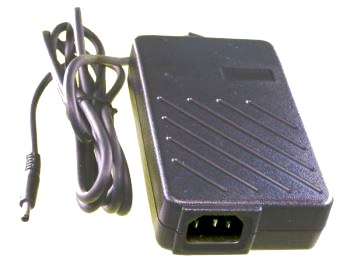

8 Volt DC, 2700 mA (2.7 amp) Switchmode desk top Power Supply

8 volt 2.7 amp power supply

Hard-to-find 8VDC desktop Universal AC regulated power supply, 2700mA maximum with a barrel connector size EIAJ-02 (4.0 OD x 1.7mm ID)

This is a compact, high quality, 8V switchmode regulated power supply, 21 watts continuous with an IEC C13 three prong AC connector.

The unit comes with the power cord as priced.

Prices
Quantity 1-10 11-50
Price PST-AC0827 includes a 3 prong USA AC cord
8 volt 2.7 amp power supply
$19.50 add_to_cart.gif $12.30
Output adapter barrel
plug kit
$7.00

ZHJX002 adapters with a barrel connector input and screw terminal output
For adapting the barrel connector to screw terminals
$2.50 each

Polarity reversing adapter for center-negative products
5.5x2.1mm barrel connector polarity switcher
$3.50

Part Number PST-AC0827 (equivalent to MI2008 or MI-2008)
Parameter Data
Output 8 Volts DC
Output Power 21 Watts max, 2.7 amps, 2700 mA
Input Voltage 95-250 VAC, 47-63 Hz
Input Frequency 47-63 Hz
Temperature 0° to 40° C Operating
Size Approximately 130 x 77 x 33 mm
(5.1 x 3 x 1.3 inches)
Weight 11.6 oz (330 gms) without AC cord,
Agency Approvals UL, TUV, GS, CSA, Class 2, double insulated, indoor use
Polarity Center Positive
Output connector 4.0 x 1.7 mm x 10 mm barrel connector (EIAJ-02 Japanese standard)
Output cord Coaxial 5mm cord, rugged use AWG wire
AC plug Removable IEC C13 connector makes it easy to use international mains cords.
  Manufactured in USA
Advantages:

OEM Battery Chargers Universal input switchmode power supply with fixed 8 volt output voltage.

OEM Battery Chargers High efficiency PC power supply for digital cameras and telecom use.

OEM Power Supplies Excellent line and load regulation.
