15 VDC, 2400 mA (2.4 amp) Switchmode AC/DC Power Supply

Hard-to-find external Universal AC regulated power supply, 15 volt 2000 mA maximum. Double Insulated

More15 volt power supply products from PowerStream

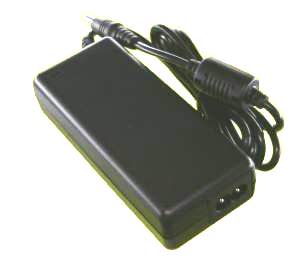

This is a compact, high quality, 15 volt switchmode regulated power supply, 30 watts continuous. It is double insulated and has a removable IEC C8 style AC wire cord for easy use in multiple countries. The USA AC cord is included.

The unit comes with the power cord as priced.
In Stock in Utah, order online or call to order.

Quantity	1-10	11-50	51-100	101-500	501+
Price PST-AC1524 Include a USA AC cord	$19.95 No longer stocked, MOQ 500 pieces. Please consider using the PST-AC1535 which will work in all applications needing 3.5 amps or less.	$18.25	$15.75	$13.10	$12.60
PST-WX12 - Optional output adapter barrel plug kit	$7.00	Call	Call	Call
Polarity reversing adapter for center-negative products	$3.50
SDY-C53F (ZHJX002) To adapt the barrel connector to screw terminals	$2.50 each

Part Number

PST-AC1524 (formerly PST-AC1520)

Parameter

Data

Output

15 Volts DC, 2.4 amps, 2400 mA

Output Power

36 Watts max

Input Voltage

100-240 VAC, 50-60 Hz

Input Frequency

50-60 Hz

No-load overhead

200mW

Size

Approximately 44 x 28 x 97 mm
(1.75 x 1.1 x 3.8 inches)

Weight

7oz, 200 g, 0.4 lbs

Agency Approvals

PSE JQA, CE, FCC, UL, cUL, Intertek S, GS, ROHS, LPS, double insulated

Output connector

5.5 x 2.1 mm x 10 barrel connector,
a variety of slip-on semi-permanent connectors are available below.

AC plug

Removable IEC C7/C8 connector makes it easy to use international mains cords.

Twelve optional DC Plugs slip over the 5.5 x 2.1 mm connector if desired.

2.35 OD x 0.7 ID Barrel
3.0 OD x 1.1 ID Barrel
3.5 OD x 1.35 ID Barrel
4.0 OD x 1.7 ID Barrel
4.75 mm OD x 1.75 mm ID Barrel EIAJ-03
5.0 mm OD x 3.5 mm ID with center pin
5.5 mm OD x 1.5 mm ID type 2 Barrel
5.5 mm OD x 2.5 mm ID Barrel
6.3 OD x 3.0 ID center pin Barrel
6.0 OD x 4.4 ID center pin Barrel
7.4 mm OD x 5.0 center pin ID Barrel
7.9 OD x 5.6 ID center pin Barrel
