May 3, 2017

High quality 19 Volt DC, 3160 mA 60W external SMPS universal input desktop power supply and laptop charger, TV and video displays, and other 19V electronics.

15 volt, 60W low voltage switching power supply Desktop Universal AC regulated SMPS switchmode 19V volt power supply, 60 Watt. Barrel connector 5.5 x 2.5, adapters also available to other sizes. 19 Volt external power supplies
More 19 volt power supplies click here.
We have received a large quantity of surplus 19 volt power supplies. This is a compact, high quality, switchmode regulated power supply with stable output, 60W continuous. This 19V AC DC adpater t has a removable three-prong C6/C7 AC cord (included) and universal AC input (100VAC to 240VAC). Suitable for 19V and 19.5V laptops. OEM quantities in stock.

Quantity 1-9 10-99 100+
Price in stock PST-AC1930 19V power supply includes US IEC C6 3 prong power cord
18 volt, 54 watt low voltage switching power supply, 3 amps maximum
SALE!
$18.20
$14.00 $9.97
PST-WX25-10 Optional 10 connector kit (see below for sizes)
10 connector kit
$5.99

5.5x2.5mm socket to screw terminal adapter
Optional screw terminal adapter for 5.5x2.5mm barrel connector
$2.50

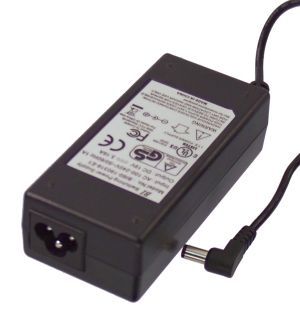

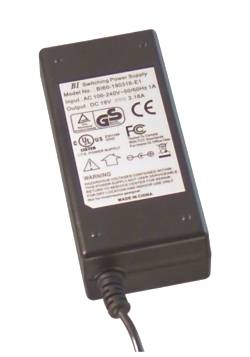

19V Desktop Power Adapter
GENERAL SPECIFICATIONS PST-AC1930
Genuine BI60-190316-E1
Safety Compliance: UL, cUL, FCC, CE, GS, TUV, double insulated, indoor use
Size 33 mm x 51 mm x 110 mm, (1.3 x 2 x 4.3 inches)
Weight: 240 grams, 8.4 ounces, 0.53 lbs
Cooling: Free air convection
Construction: Impact resistant thermoplastic enclosure case
INPUT SPECIFICATION
Input Voltage: Input Voltage: rating 100-240VAC
Input Connector: IEC C6, three prong input socket allows cords for any country to be used, the North American cord is included.
Input Frequency: 47-63Hz nominally 60Hz and 50Hz
OUTPUT SPECIFICATION
Output Voltage: 19.0 Volts
Output Current: 3.16 Amps, 3160 mA
Output Wattage: 60 Watts continuous, 72 Watts peak
Output Cord 6 foot, 2 conductor 18 AWG wire, FT1 coaxial cord type AWM 18AWG FT1 VW-1 300°C
Output Connector: 5.5 mm OD x 2.5 mm ID
right angle barrel connector

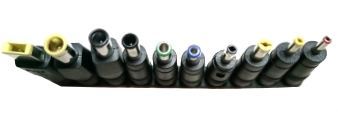

Optional 10 connector kit 10 connector kit
These slide-on adapters fit over the 5.5mm x 2.5mm connector above.
3.5mm OD x 1.35 ID
4.0mm OD x 1.7 ID
5.5mm OD x 1.7 ID
4.75mm OD x 1.75 ID
5.5mm OD x 2.1 ID
6.3mm OD x 3.0 ID
6.0mm OD x 4.3 ID center pin
7.4mm OD x 5mm ID center pin
7.9mm OD x 5.6 ID center pin
Rectangular Lenovo connector
Output Polarity Center Positive

Advantages:

OEM Battery Chargers Universal 19V AC power adapter input switchmode power supply brick with fixed 19 volt output voltage.

OEM Battery Chargers High efficiency miniature power supply for computer or ITE use.

OEM Power Supplies Fully regulated power supply is useful for devices requiring 19 volts and 3160 mA or less.
