March 10, 2021

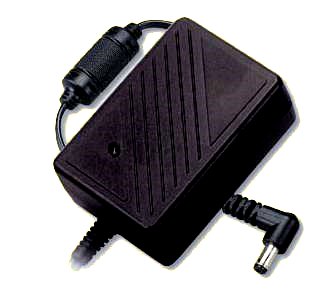

9 Volt DC, 1800 mA Switchmode wall mount Power Supply 400Hz input

low voltage switching power supply, 2.5 amps maximum

400Hz Wall plug 9V power supply, 1800 mA maximum.

Includes European, UK, and Australian adapter plugs

international plugs
.
folding plug AC power supply with international inputUnfolded plug

Prices

Quantity 1-10 11-50 51-100 101+
PST-AC2809 with interchangeable
output plugs
:
2.5 mm audio, 3.5 mm audio, 5.5 x 2.5 mm barrel, 5.0 x 2.1 mm barrel, 3.5 x 1.35 mm barrel, 5.5 x 1.5 mm barrel
Unfolded plug
$19.90
$16.50 $14.25 Call
For optional 16 piece adapter kit for use with the PST-AC2809 click here $8.00 per set of 16 connectors

PST-AC2809-21 with fixed 2.1 x 5.5 mm barrel connector $19.90
$16.50 $14.25 call
Kit of 7 slip-over output adapters for use with the PST-AC2809-21
3.5 x 1.35 mm Barrel, 4.75 x 1.75 mm Barrel (EIAJ-03), 5.0 x 3.5 mm with center pin, 5.5 x 2.5 mm type 2, 5.5 x 2.5 mm Barrel, 6.0 x 4.5 center pin, 6.5 x 3.0 mm Barrel
$7.00
Call Call Call

Part Number PST-AC2809 international power supply
Parameter Data
Output voltage 9 Volts DC regulated
Output current 1800 mA, 1.8 amps
Output Power 30 Watts max, 16.2 watts continuous
Input Voltage 100-240 VAC, 47-63 Hz
Input Frequency 47-63 Hz, 400 Hz
Temperature 0° to 40° C Operating
Weight 8 oz. 225 grams
Size Approximately 60 x 80 x 32 mm
(2 x 3 x 1 inches)
Agency Approvals UL, CUL
Output connector 5.5 x 2.1 mm barrel connector.
Output Polarity Center Positive
Cord Output cord 18AWG zip cord, 8 feet long

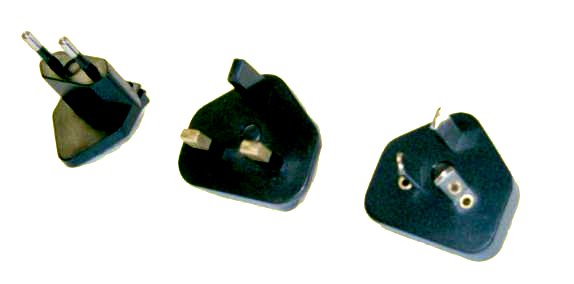

International Adapters
international plugs

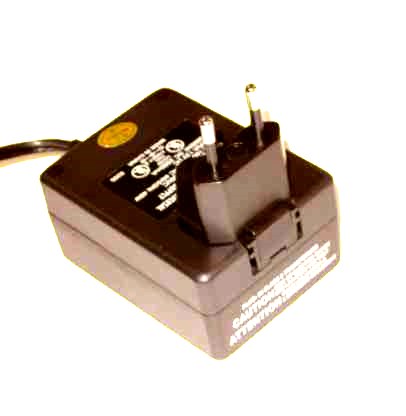

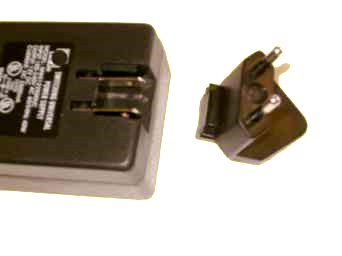

Three plugs included: European, British, and Australian The North American plug folds down and the adapter plug slides in at the end Showing the European plug snugly attached
