4.5 VDC, 3000 mA (3.0 amp) Switchmode desk top Power Supply

4.5 volt  power supply catalog 0.5 amp to 3 amps
More 4.5 volt power supplies

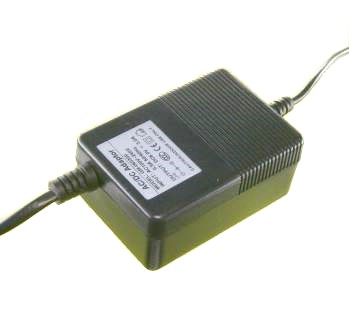

4.5 volt 3000mA power supply

Hard to find 4.5 volt DC desktop Universal AC regulated power supply, 3000 mA maximum

.
This is a compact, high quality, 4.5V switchmode regulated power supply, 13.5 watts continuous, double insulated with fixed AC cord.

Prices
Quantity 1-10 11-50 51-100 101+
Price PST-AC4530
4.5 volt 3000mA power supply
$19.50
$18.00 $15.20 $13.90
PST-WX12
Optional 12 piece Output adapter barrel plug kit
plugset
$7.00
Call Call Call
ZHJX002 adapters with a barrel connector input and screw terminal output
To adapt the barrel connector to screw terminals
$2.50 each

Polarity reversing adapter for center-negative products
5.5x2.1mm barrel connector polarity switcher
$3.50


Part Number PST-AC4530 (GM-045300)
Parameter Data
Output 4.5 Volts DC
Output Power 13.5 Watts max, 3.0 amps, 3000 mA
Input Frequency 50-60 Hz
Input Voltage 100-240 VAC, 50-60 Hz
Temperature 0° to 40° C Operating
Size Approximately 55 x 80 x 35 mm
(2.2 x 3.1 x 1.4 inches)
Agency Approvals CE, CCC, LPS, indoor, double insulated
Output connector 5.5 x 2.1 mm x 12 barrel connector, center positive
a variety of slip-on semi-permanent connectors are available below.
Output cord 56 inches, 4 foot 8 inches, 142cm
AC plug Fixed 2 prong US style cord, 57 inches, 4 foot 9 inches, 144cm
Weight 7.3 oz (207 gms) with AC cord,
Optional DC Plugs slip over the 5.5 x 2.1 mm connector if desired.
plugset
  • 2.35 OD x 0.7 ID Barrel
  • 3.0 OD x 1.1 ID Barrel
  • 3.5 OD x 1.35 ID Barrel
  • 4.0 OD x 1.7 ID Barrel
  • 4.75 mm OD x 1.75 mm ID Barrel EIAJ-03
  • 5.0 mm OD x 3.5 mm ID with center pin
  • 5.5 mm OD x 1.5 mm ID type 2 Barrel
  • 5.5 mm OD x 2.5 mm ID Barrel
  • 6.3 OD x 3.0 ID center pin Barrel
  • 6.0 OD x 4.4 ID center pin Barrel
  • 7.4 mm OD x 5.0 center pin ID Barrel
  • 7.9 OD x 5.6 ID center pin Barrel

Advantages:

OEM Battery Chargers Universal input switchmode power supply with fixed 4.5 volt output voltage.

OEM Battery Chargers High efficiency PC power supply for digital cameras and telecom use.

OEM Power Supplies Excellent line and load regulation.
