Genuine EDAC EA11603 150 watt Regulated Switching Power Supply

12 volt 4.1 amp switching power supply

This inexpensive AC/DC switching power supply adapter series is of the highest quality and technology, isolated, fully regulated and useful for any application requiring UL/CUL/CE/ROHS at 150 Watts or less.



Model : PST-EA11603 Name : 12V through 24V AC/DC Switching Power Supply for Cooler, Car Appliances, mini-ITX computers and other applications.

Description : For complete data sheet see the bottom of the page. Special Features : - - Fully regulated set top or desk top style, low ripple - Light weight & compact - Short circuit protection - Automatic thermal cut off - Automatic overload cut off Group : Adaptor Type : Switching Power Supply Approval : UL/CUL, TUV, CE, CB, PSE, ROHS, WEEE, CEC efficiency
New: we now supply 15V, 18V, 19V, and 24V versions of the EA11603 and EA11603A

MODEL

SPECIFICATION.

CABLE

Connector

Price Quantity 1-9 Price Quantity 10-99
EA11603A-50 12V/10A 5.5x2.5x11mm Barrel connectors come in different sizes $137.50
$117.50
EA11603A-51 12V/10A 5.5x2.1 mm Barrel connectors come in different sizes $137.50

$117.50
EA11603A-52 12V/10A 5.5x2.5x12mm Barrel connectors come in different sizes $137.50
$117.50
EA11603A-53 12V/10A 4PIN DIN (Pin assignment same as Clevo)P1/P2 +, P3/P4/Shield - 4 pin din connector $137.50
$117.50
EA11603A-54 12V/10A No connector, stripped and tinned leads   $137.50
$117.50
EA11603A-55 15V/8A 5.5x2.5x11mm Barrel connectors come in different sizes $137.50
$117.50
EA11603A-56 12V/10A 5Pin din connector (P1.4.2 -; P3.5 +)   $137.50
$117.50
EA11351A-54
also known as EA11351A-120
12V/10.0A 5.5x2.5x11mm Barrel connectors come in different sizes $107.50 add_to_cart.gif $107.50


MODEL

SPECIFICATION

CABLE

REMARKS

Price Quantity 1-9 Price Quantity 10-99
EA11603-50 20V/7.5A 5.5x2.5x11mm
Customer must specify pin connections
Barrel connectors come in different sizes $125.00
$117.50
EA11603-51 24V/6.25A 4PIN DIN Customer must specify pin connections 4 pin din connector $137.50
$117.50
EA11603-52 19V/7.9A 4PIN DIN (R-, L+) 4 pin din connector $137.50
$117.50
EA11603-5 20V/7.5A 5.5x2.5x10mm, 90° 90 degree barrel connector $125.00
$117.50
EA11011H-57 19V/7.9A 4PIN DIN -Shield, R-, L+) 4 pin din connector $137.50
$117.50
EA11603-55 19V/7.9A 6.3x3.0x13mm, 90° 90 degree barrel connector $137.50
$117.50
EA11603-56 20V/7.5A 4PIN DIN Customer must specify pin connections 4 pin din connector $137.50
$117.50
EA11603-58 19V/7.9A 5.5x2.5x12.5mm (HP) Barrel connectors come in different sizes $125.00
$117.50
EA11603-59 24V/6.25A Stripped & Tinned   $137.50
 $117.50
EA11603-61 19V/7.9A 5.5x2.5x12mm, 90° 90 degree barrel connector $125.00
$117.50
EA11603-63 24V/6.25A NO CONNECTOR Stripped and Tinned wires $137.50
$117.50
EA11603-64 19V/7.9A NO CONNECTOR Stripped and Tinned wires $137.50
$117.50
EA11603-65 20V/7.5A NO CONNECTOR Stripped and Tinned wires $137.50
$117.50
EA11603-66 19V/7.9A 5.5x2.5x12mm Barrel connectors come in different sizes $137.50
$117.50
EA11603-67 20V/7.5A 6.5x1.4x11mm (Center-pin) $137.50
$117.50
EA11603-68 36V/4.16A 4PIN DIN (P1/4: +, P2/3/ Shield: -) 4 pin din connector These 36 volt versions are no longer available, sorry. $117.50
EA11603-69 24V/6.25A 8PIN DIN
Customer must specify pin connections
  $137.50
$117.50
EA11603-70 19V/7.9A 4PIN DIN (same as EA11203-50 connections)P1/P2 +, P3/P4/Shield - 4 pin din connector $137.50
$117.50
EA11603-73 24V/6.25A 4PIN DIN, 1500mm (R/Shield:-, L:+), same connections as EA11203A-57 4 pin din connector $137.50
$117.50
EA11603-74 19V/7.9A 6.5x1.4x11mm (Center-pin) $137.50
$117.50
EA11603-75 24V/7.5A 3PIN DIN, 1800mm(pin1/shield:-, pin2/3:+)   $137.50
$117.50
EA11603-76 24V/6.25A 5.5x2.1x11mm, 90° 90 degree barrel connector $137.50
$117.50
EA11603-77 24V/6.25A 5.5x2.5x12.5x1200mm 90°, for Panasonic 90 degree barrel connector $137.50
$117.50
EA11603-78 18V/8.3A 4PIN Mini Din Clevo style 4 pin din connector $137.50
$117.50
EA11603-79 24V/6.25A 5.5x2.5x9.5mm Barrel connectors come in different sizes $137.50
$117.50
EA11603-80 19V/7.9A 4PIN DIN
Customer must specify pin connections
4 pin din connector $137.50
$117.50
EA11603-81 24V/6.25A 5.5*2.5*11mm DC JACK WITH SCREW-82   $137.50
$117.50
EA11603-82 19V/7.9A Interchangeable tip   $137.50
$117.50
EA11603-83 19V/7.9A 4 pin din with R +/L – 4 pin din connector $137.50
$117.50
EA11603-84 19V/7.9A 5pin HP connector   $137.50
$117.50
EA11603-85 24V/6.25A 4PIN XLR(F) CONNECTOR   $137.50
$117.50
Model Number EA11603, EA11603A Switching Power Supply
Input Voltage Range 90-264 VAC 50/60 (47 to 63) Hz
Peak Output Power 150 Watts
Peak Output Current Depends on voltage, up to 10 Amps continuous
Load Regulation ±5% over rated current
Efficiency >82% over full range of input and output
Output Voltage Nominal Set at Factory 12 VDC, 15 VDC, 18 VDC, 19 VDC, 20 VDC, 24 VDC, 30 VDC, 36 VDC
Input Connector IEC320 C6 or IEC C13, Class I input socket allows cords for any country to be used, the North American cord is included.
Dimensions 173 x 60 x 38 mm (6.8 inch x 2.4 inch x 1.5 inch)
Approvals UL/CUL, TUV, CE, CB, PSE, ROHS, WEEE
Temperature 0 to 40°C operating, -20 to 85°C storage
Weight 560 grams, 1.2 pounds
Cooling Fan cooled, the fan comes on only when necessary, so it will cycle on and off as needed

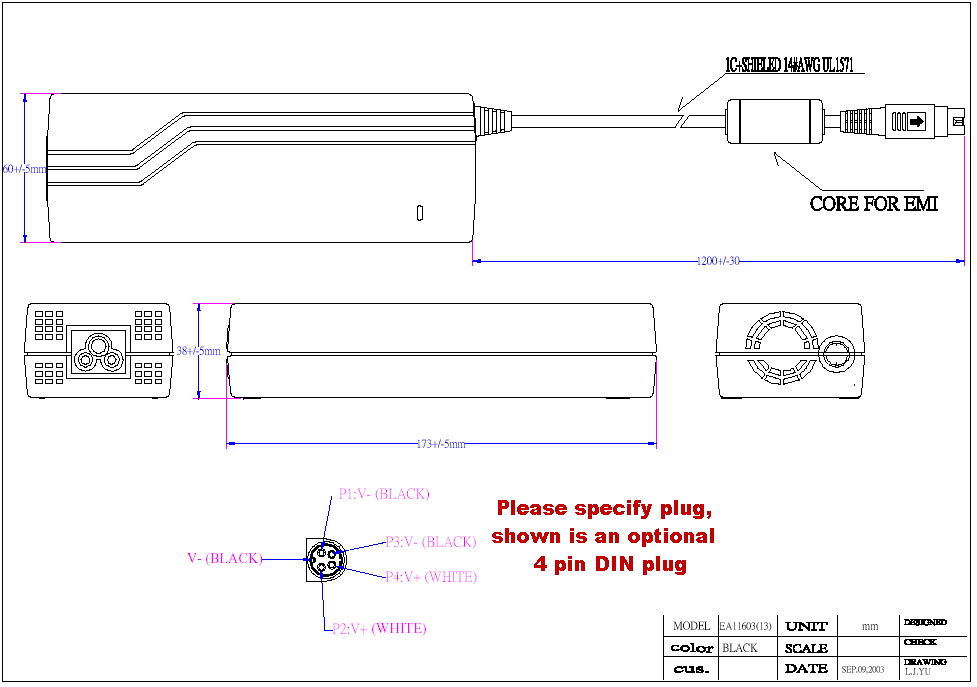

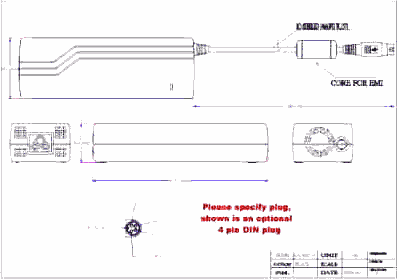

For full drawing click here For full drawing click here

Advantages:

Inexpensive switchmode AC switching power supply AC/ DC converter.

Inexpensive fully regulated power supply with IEC socket input

Efficiency >85%, depending on input voltage, and output power.
