5 Volt 2000 Watt Power Supplies

5 volt 2000 watt power supply

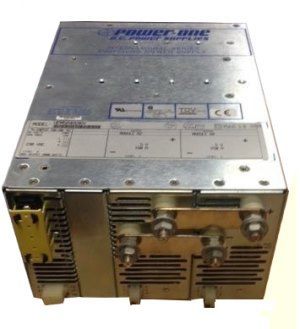

The HPM5A4A2KH is a massive yet compact Power-One modular power supply with 240VAC input and 5V output at up to 400A. It has control and monitoring outputs which can be ignored if they are not needed. The two output modules are 5V 150A and 5V 250A. They are tied together as shown to supply up to 400 amps, but could be made independent if desired. Are you ready to charge 200 cell phones simultaneously?
5 volt 500 mA switching power supply with 5.5 x 2.1 mm barrel connector
Click here for more 400Hz power supplies
Originally designed for postal sorting machines, we stock these as original equipment replacement for the Post Office.


The input frequency range is very wide, 47-400Hz. Remote sensing is available using existing connectors for more accurate voltage delivery to the load.
HPM5A4A2KH
New in box
5 volt, 2000 Watt $495
MODEL HPM5A4A2KH
VOLTAGE 5V adjustable between 4.5 Volts and 5.5 Volts
CURRENT 0 to 400A
INPUT CONNECTIONS 6-32 captive screw terminals on a covered terminal block
SCREW TERMINAL TORQUE VALUES 6-8 inch-lbs
DIMENSIONSsee dimensioned drawing below 12.3 x 8 x 5 inches( 314mm x 203mm x 127mm
WEIGHT 15 lbs, 6.8kg
INPUT VOLTAGE 240VAC Range (160-264 VAC)
INPUT CURRENT 23A maximum
INPUT SURGE CURRENT 38A
SUPPLY FREQUENCY 50Hz, 60Hz, 440Hz (47-440 Hz)
LINE REGULATION ±0.1%
LOAD REGULATION <10mV with remote sense
<60mV without remote sense
MAX RIPPLE&NOISE <50mV PP
OPERATION TEMPERATURE 0°C~+70°C, derate 50% linearly to half power between 50°C and 70°C
STORAGE TEMPERATURE -45~+85°C
PROTECTIONS Short circuit, over temperature, output overvoltage,
EFFICIENCY >91% typical
POWER FACTOR 75% at full load
LEAKAGE CURRENT 1.5mA UL1950
Certificates EN60950/UL1950, CE
OVERCURRENT PROTECTION The power supply will continue to supply power up to about 115% of rated current and then will go into "hiccough" mode, turning on briefly to check if the current is too high, then turn off again.
DETAILED SPECIFCATION SHEET

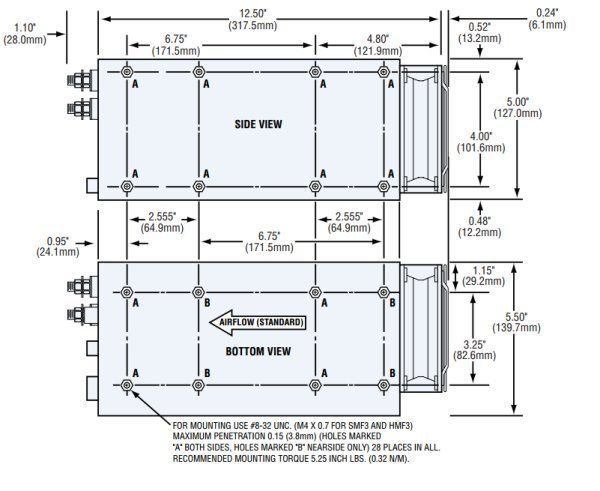

Dimensioned drawing of the HPM5 series
