24VAC Low Voltage Input Electronic ballasts for fluorescent lamps

24VDC and 12VDC input electronic ballast 12VDC and 24VDC input electronic ballast for fluorescent lights
DC input electronic ballast

These high efficiency ballasts are for 20 and 40 watt fluorescent light fixtures in cars, RVs, boats, and solar systems.


  Quantity 1-10 11-50 51-100 101+
PST-EB40S24AC add_to_cart.gif $34.00 $27.50 $24.90 $19.00
PST-EB20D24AC add_to_cart.gif $34.00 $27.50 $24.90 $19.00
This is a compact, high efficiency, switchmode regulated electronic ballast for use when 24VAC is available. This is useful for low voltage systems, such as security, irrigation, sprinkler installations and HVAC. This is an inverter-style ballast that uses high frequency to eliminate the flicker which is seen in AC powered ballasts.


EB series 24VAC ballasts are designed for fluorescent tubes with heating filaments at both ends. Once the power is applied and the tube will light immediately without flicking. They are not suitable for cold cathode lamp/tube without filaments.

.Specifications
PST-EB40S24AC PST-EB20D24AC
GENERAL SPECIFICATIONS
Size 140 x 40 x 25 mm
5.5 x 1.6 x 1 inch

Weight: 85 grams
3 oz

Cooling: natural convection
INPUT SPECIFICATION
Input Voltage: 24 Volts AC
Input Voltage Range: 18-26.4 Volts AC
Input Current 1.0-1.2 Amps
Input Connector: Captive screw terminals
OUTPUT SPECIFICATION
Drives lamp type T5/T8/T12 Single T5/T8/T12 Double
Lamp power 30-40 watts 15-22 watts each
Output Frequency 25-30 kHz
Efficiency >90% typical
Power Required At least 45 watts for a 40 watt bulb
Output Connection screw terminals
Socket type These ballasts require the NON-SHUNTED sockets, and four pin bulbs
Note: These ballasts are not suitable for running in parallel or series in order to run larger bulbs.

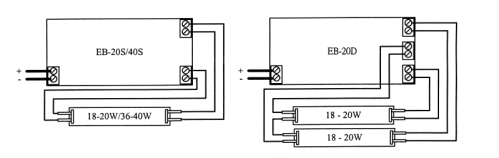

hookup diagram for electronic ballast
Click the image to see a larger diagram of the ballast hookup

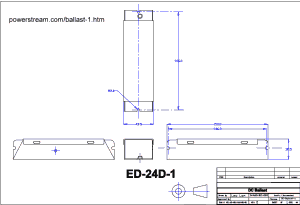

dimensioned drawing of the 24VAC input fluorescent ballast
Advantages:

OEM Battery Chargers DC input switchmode electronic ballast with 24 volt AC input.

OEM Battery Chargers High efficiency miniature ballast for irrigation, and HVAC applications.

OEM Power Supplies Can be used with a low voltage power supply for aquariums for added safety.
