Industrial and military grade waterproof IP676 12V to 12V volt DC/DC Converters 42 Amp 850 Watt, or 20A 450 Watt

More DC/DC converters with 12VDC input and 1.5V, 5V,  6.5V, 8V, 10V, 11V, 12V, 13.8V, 14V, 15V, 16V, 18V, 19V, 20V, 21V, 24V, 27V, 36v, or 48V output
More DC/DC converters with 12V input
850 watt DC/DC converter 12V to 12V regulator 450 watt dc converter

These DC converters are not hermetically sealed, but they are fully IP676 ingress protected, which includes immersion up to 1 meter. They have a wide operating temperature range, and use dual military style circular bayonet connector for both input and output. The are designed to allow the use of regulated 12 volt equipment in 12 volt, 14 volt, and 24 volt vehicles, marine, military, PLC, and cell tower applications. These are attractive, reliable, robust DC/DC converters good for fork lifts, off-road, construction and recreational equipment. They are relatively immune to vibration and shock.
The output voltage can be adjusted between 9.5V and 18V by removing the front cover. They have a wide range of input voltages, 10.5 to 32V, so cover the definition of buck-boost, where the input voltage can be either higher than or lower than the output voltage.

To determine the output amps you need just add up the watts of all the equipment and divide by 12.5 volts.

These converters are fully isolated and can be used for all 12 volt applications, including negative ground, positive ground, and floating ground installations.
DC-DC Converters 15 amp
DC to DC converter
450 watt dc converter
42 Amp
DC to DC Converter
12V to 12V DC/DC converter, heavy duty  waterproof
Part Number
and Price
6 Foot cable with connector  Cable to fit the PSEC-618HS
$295 each
Pair of cables to fit the PSEC-711HS
Connector only, no cable CA3106E24-11SB NATO connector without cable
$110 each
One cable is used
Nominal Input Voltage The parameters are the same as the PSEC- 711HS except where listed below 12VDC
Input Voltage range   10.5 to 32VDC
Max Input current at No Load <150 mA <950 mA
Output voltage 13.0V 12.5V
Output voltage adjustment by removing the front plage 9.5VDC to 18VDC 9.5VDC to 18VDC
Max Output Current(s) 20A for output voltages adjusted to 9.5V and 18V 42 Amps for output voltages set between 9.5V and 18V
Max Output Power; the actual output current depends on the ratio between the input and output voltages. Vout*20 amps Maximum Output power =
Vout * 42 amps
For example 18 volts * 42 Amps = 756 Watts
Max Output Power (continuous) 450W 850W
Output current limit? Short pulses up to 550W 110% of maximum current with continuous automatic retry, 1000W peak for short pulses
Operating Temperature Range at 100% load   -40°C to +70°C
Operating humidity   0-100%
Efficiency   >82 % at 50% rated power
>75% at full rated power
Load Regulation   <50mV with remote sensing
Maximum input current 28A at 12V in, 13V out 58A at 11.5Vin, 25.5Vout
Switching frequency   kHz
Output ripple noise   <50 mV rms
Isolation   Fully isolated between input and output 2500VAC rms
Housing to input >1800VAC
Housing to output >1800VAC
Remote power on/off   Yes, through grounding a wire on the connector. This feature is disabled at the factory
Remote voltage sense   Yes. through two sense wires on the connector
Ingress rating   IP676, (dust tight, immersion up to 1 meter depth, 1 Joule mechanical impact energy)
Connections Mating connector is the Canon 3106E24 - 11SB. See the connection diagram below  Mating connectors
Canon 3106E20-24PB
Canon 3060E20-8SB
Protection   Low input voltage < 10.5 +/-0.3 VDC,
High input voltage > 32.0 +/- 1.0 VDC
Over temperature by internal thermostat, self resetting
Cooling   Through convection and the baseplate
Dimensions 8.62 x 7.75 x 2.95 inches
21.9 x 20 x 7.5
15.5 x 8.0 x 2.9 inches
39.4 x 20.3 x 7.4 cm
Fuse can be accessed by removing the front cover   ATC-30
Drawings   See below
Weight 3.2 kg (7 lbs) 8.2 kg (18 lbs)
Audible Noise None None
Warranty 2 years limited warranty for parts and labor 2 years limited warranty for parts and labor

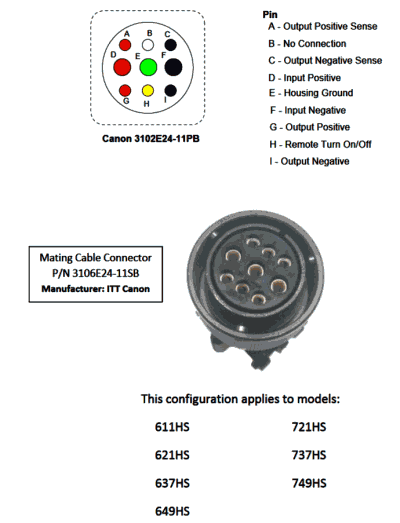

  PSEC-611 uses two connectors
connector pinout

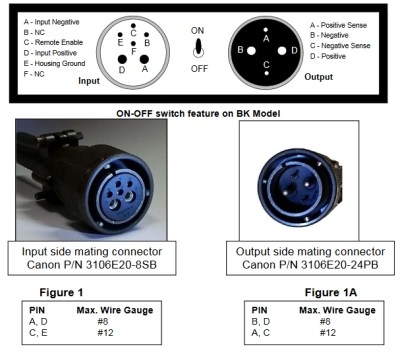

PSEC-711 uses two connectors
Remote sense configuration:

remote sense configuration :

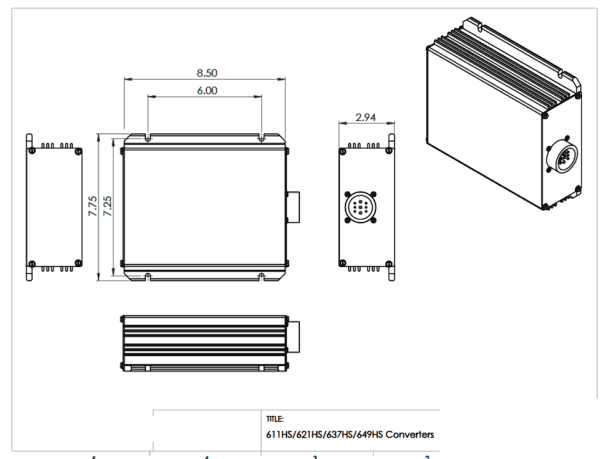

dimensioned drawing of the 621HS
