High Power DC-input chargers for Electric Vehicle Auxiliary Systems, fully isolated for 24V batteries. 5 year warranty.

High voltage DC converters 12V output, 24V output 800 watt power supply for electric vehicle auxiliary systems high power DC/DC converter for electric vehicles
For more high power DC chargers for electric cars that are fan cooled, click here.

Suggested Applications: Running lights, fans, wipers, electric windows, radios, stereos and charging 12 volt batteries from 144V, 196V, 240V, 288V, and 320VDC electric car batteries.

High efficiency, switchmode power chargers. These DC-DC power supplies have a nominal output voltage of 12V, 24V, 48V, and 72V. They are high efficiency, sealed, and the watertight versions do not need a fan for cooling
These DC chargers are designed specifically for electric cars and are fully isolated from both the positive and ground of the traction battery for added safety and reduction of ground-loop noise.
These can handle a continuous load
Soft start technology eliminates the possibility of a voltage spike at start-up.
Over-current protection, short circuit protection with automatic restart.
Low voltage protection, output over-voltage protection, circuit malfunction protection.
All these models come in regular and water proof IP66 versions.
These are steel mill capable and can withstand 1000V spikes

Data table for Electric Car DC chargers
Model number Input Voltage Output
Voltage
Continuous Amps Output Watts Weight Dimensions Price

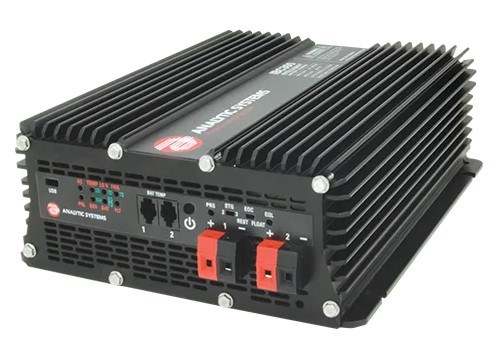

PBCDi320-24
PBCDi320-24 DC input battery charger
Canbus
70-350VDC 27.6V 10A 275W 6.2 lbs 241x203x83 mm
9.5 x 8 x 3.25 inches
$661
PBCD310-110-24 100-140VDC 27.6V 20A 300W 7.5 lbs 244 x 208 x 64 mm
(9.6 x 8.2 x 3.5 inches)

PBCD310-250-24 230-280VDC 27.6V 20A 300W 7.5 lbs 244 x 208 x 64 mm
(9.6 x 8.2 x 3.5 inches)

PBCD310-300-24 280 - 360VDC 27.6V 20A 300W 7.5 lbs 244 x 208 x 64 mm
(9.6 x 8.2 x 3.5 inches)

BCD1050-24 100VDC-400VDC 27.6V 40 Amps 950W peak, 820W continuous     $1571
BCD1050W-24
IP66 Watertight
100VDC-400VDC 27.6V 40 Amps 950W peak, 820W continuous     $2034
BCD1550-24 120VDC-400VDC 27.6V 60 Amps 1440W peak, 1380W continuous     $1947
BCD1550X-24 ruggedized 120VDC-400VDC 27.6V 60 Amps 1440W peak, 1380W continuous     $2136
call
BCD1550W-24
IP66 Watertight
120VDC-400VDC 27.6V 60 Amps 1440W peak, 1380W continuous     $2647
