ER10250 ½AAA primary lithium thionyl chloride battery from GMB Power

ER10250 lithium thionyl chloride primary cell 1/2 AAAer10250 1/2 AAA lithium thionyl chloride battery back side

Genuine GMB ER10250 approved by the US Military

ER 10250 half AAA lithium thionyl chloride cell
NSN 6135-01-667-2882
NIIN 016672882
INC 35499
Part number
and price
ER10250 Quantity 1-99 $7.00
  Quantity 100-999 $3.60
  Quantity 1000-9999 $3.50
  Quantity 10,000+ $2.70
Nominal Voltage (see graphs below) 3.6 VDC
Nominal capacity 400 mAH, 0.40 AH
Maximum constant discharge current (see graphs below) 5mA
Maximum pulse discharge current 10mA
Operating temperature range (see temperature curve below) -55°C to 85°C
Weight 4 grams
Data sheet ER10250 data sheet
Approved for use in KG-250XS encryptors

GMB Power ER10250 1/2 AAA cell data:

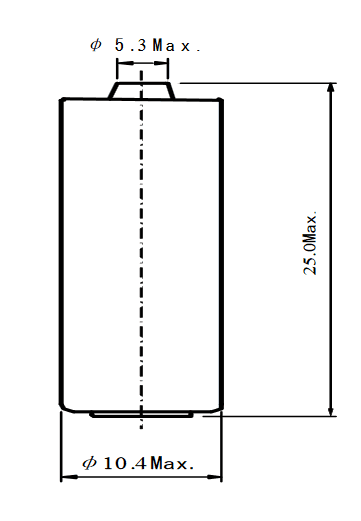

drawing of the ER10250 with dimensions

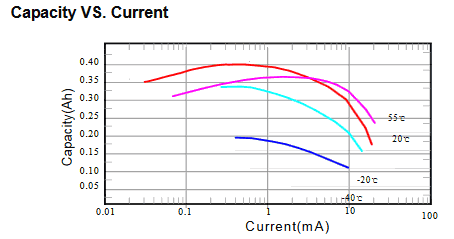

er10250 capacity versus current

Plot of capacity versus current.

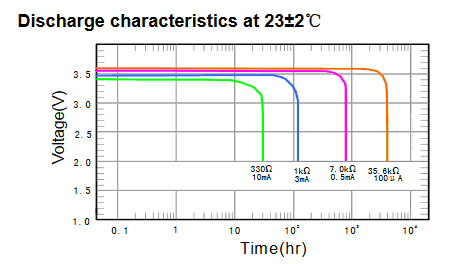

er10250 discharge current versus load

Discharge time versus voltage and current

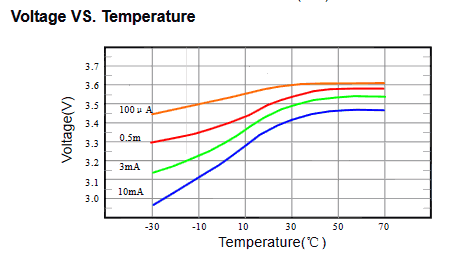

er10250 discharge voltage versus temperature

Temperature dependence of voltage at various discharge currents.
