115VAC 400Hz to 115VAC 60hz frequency converter

115VAC 60Hz to 115VAC 400Hz frequency converter, 500W pure sine wave.

Industrial grade 400Hz to 60Hz single phase frequency converter.

400Hz tutorial
400Hz Tutorial
400 Hz frequency converters and inverters

More 400 Hz frequency converters, power supplies and inverters

  • Pure sine wave 1-phase 400 Hz 115V output exactly duplicates avionics power.
  • Wide operating temperature range, -0°C to +50°C.
  • Input frequency wide range 47Hz to 430Hz, includes 50Hz, 60Hz, 400Hz
  • RF Emission free, EN 55022 Class A or better
  • Under voltage input will not damage the unit
  • Heavy Duty, Rugged and reliable for years of safe operation
  • Designed to meet EN60950-1 and related standards
  • 115V 400Hz single phase ground power supply
  • Convertisseur 400hz 500W monophasé

This is a industrial quality AC/AC frequency converter which uses high frequency PWM technology to generate the required output power with pure sine wave 400Hz output. It is a mature design with a track record in numerous applications. The AC/DC input first stage converts the input voltage to a high voltage DC voltage, which feeds the second stage, a DC/AC inverter to generate the required AC output. The use of high frequency switching enables a compact, low weight and high efficiency frequency converter. The unit has full electronic protections. Both input and output connections are filtered for low noise. Cooling is by built-in fan.

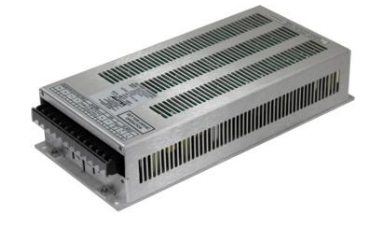

500 watt 1 phase AC/AC frequency converter 400 Hz 500VA power and frequency converter
400 hertz to 60 hertz frequency converter
Part Number
and Price
FCA500-115/60-115/400
Allow up to 7-8 Weeks for shipping
$1397
Output Voltage 115 VAC 400 Hz, single phase, floating output
Input Voltage 95-132 VAC 47-430 Hz, single phase
Voltage regulation ± 5% from zero to full load
Input current 9.5A rms maximum
Output current 4.35 Amps continuous
EMI Meets EN55022 Class B (typical)
Operating Temperature Range -20°C to +60°C
Humidity 5-95% non-condensing
Efficiency >78 % at full load
Duty Cycle Continuous power 24 hours per day
Output wave form Pure sine wave, <5% harmonic distortion at full load
Protection Output overload protection, short circuit protection by hiccup mode, thermal shutdown with automatic recovery
Cooling Convection cooling
Over-temperature shut down After prolonged operation at high ambient temperature the unit may shut down by means of a thermal cutout switch. The unit will automatically come back on when the chassis cools down, typically within 5 minutes.
Input Connections Terminal block, 3/8" spacing
ROHS Fully ROHS compliant
Output Connections Terminal block
Dimensions 3U2 standard, 5.2 x 5.2 x 16 inches, 132 x 132 x 407 mm
Cooling Convection cooling, no fan
MTBF 95,000 hours at 45°C
Shock and Vibration IEC 61373 Cat 1 A & B
Weight 10 pounds, 4.5 kg
Country of Origin Made in Canada, NAFTA eligible
Warranty* 1 year *Warranty depends on installation within good engineering practice.
Mounting drawing Drawing for FCA500 series
Terminal connections Screw terminals
Data sheet Data Sheet for the FCA500-115/60-115/400
