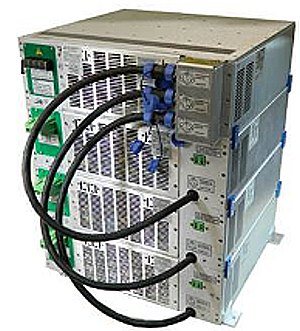

Heavy duty industrial grade pure sine wave DC/AC inverters, 24VDC input, 380VAC 50Hz or 60Hz 3-phase output, 15kVA

Industrial Pure Sine Wave Inverters 6000  watts, 125VDC input 380V 3-phase

Other input/output voltages and frequencies are available in this package, please contact us

.
The range of 24VDC input is 21-29VDC
  • Very rugged and reliable.
  • Isolated, can be used in positive or negative ground applications.
  • Thermostatically controlled fan comes on only when needed.
  • Extra heavy filtering to isolate noise from equipment sharing the same battery
  • Crystal controlled for precise timing for digital clocks and controllers
  • Suitable for any computer that requires less than 15000 watts continuous.
  • Low voltage warning and shutdown to protect the batteries
  • Illuminated on-off switch
  • Pure sine wave exactly duplicates industrial 3-phase current.
  • Manufactured in accordance with COTS standard IPC-A-610.
  • Ultra quiet with no electrical interference.

15000 watt DC/AC inverters 24 volts DC to 380 VAC
Part Number
and Price
CTP-15K-2/E3P-4X3U7-I0294-60Hz
CTP-15K-2/E3P-4X3U7-I0294-50Hz
CTP-15K-2/E3P-4X3U7-U0294
Allow up to 8-12 weeks for manufacturing
$30,552
Input Voltage 21-29VDC
Input current 873 Amps total, 291 Amps per module at 21VDC input
Output Voltage 380VAC 3-phase
Output Frequency 60 Hz or 50Hz pure sine wave (set at factory)
Output Power 15kVA, 15000 VA, 22.7 Amps RMS per phase
Configuration All neutrals are connected to chassis in Y configuration
Load Crest Factor 2 at 90% load
Output current limit? Yes
Operating Temperature Range 0°C to +50°C
Humidity 5-95% non-condensing
Efficiency 82% minimum at full load
Duty Cycle Continuous power 24 hours per day
Harmonic Distortion <5% at full load
Line Regulation < ±6%
Load regulation < ±6% over the range of 10% load to 100% load
Temperature Drift <0.05% per °C over operating temperature range
Isolation 700VDC Input to chassis, 2250VDC Input to output, 2250VDC output to to chassis, neutrals are connected to the chassis internally
Remote power on/off No
Input Connections Inputs: Terminal block, 2 x Phoenix 190A
Output Connections Output: 4-pole barrier block, 13mm spacing
Enable Connection Phoenix FRONT 235-V/SA10
Input Protection Thermal fuse, Inrush current limiting, varistors, low input voltage will not damage inverter
Output Protection Current limiting with short circuit protection, thermal shutdown with automatic recovery in case of continuous overload or insufficient airflow.
Output failure alarm.
EMI Meets EN55022 Class A conducted emissions
Agency compliance Designed to meet common safety standards
Dimensions Four 3U7 cases, each with sizes:
432 x 132 x 407mm
17” x 5.2” x 16”
19 inch rackmount
Weight 55 Kg (121lbs)
MTBF 95,000 hours at 45°C excluding fans
Cooling High quality fans
Warranty* 2 years *Warranty depends on installation within good engineering practice.
Country of Origin Canada, NAFTA eligible

Proven in the following applications:

  • Marine / Automotive / RV
  • Military Applications (COTS)
  • Industrial Controls
  • OEM Applications
  • Solar / Alternative Power Systems
  • Fuel Cells
  • Electric Utilities and Substations
  • Telecom Power Plants
  • Manufacturing Locations
  • Steel Mills
