Pure sine wave precisely duplicates household AC
voltage.
Extra heavy filtering to isolate noise from equipment sharing
the same battery
Ultra quiet with no electrical interference.
Over temperature protected
Very rugged and reliable, conformal coated.
Low voltage warning and shutdown to protect the
batteries
Suitable for operation with lead acid, sealed lead acid,
lithium ion and lithium iron phosphate batteries.
Isolated, can be used in positive or negative ground
applications.
Crystal-controlled for precise timing for digital clocks and
controllers
Manufactured in accordance with COTS standard IPC-A-610.
Using the free to download 'Power Wizard' software, the user
can select output frequency, output voltage and low voltage shutdown parameters
from any laptop through the standard USB interface.
2400 watt DC/AC
inverters
24VDC to
110VAC
24VDC to
220VAC
48VDC to
110VAC
48VDC to
220VAC
125VDC to
110VAC
125VDC to
220VAC
Part Number and Price
PIPSI2405-24-110 Allow up to 45 days for manufacturing $2688
PIPSI2405-24-220 Allow up to 45 days for manufacturing
$2688
PIPSI2405-48-110 Allow up to 45 days for manufacturing
$2780
PIPSI2405-48-220 Allow up to 45 days for manufacturing
$2780
PIPSI2405-125-110 Allow up to 45 days for manufacturing
$3153
PIPSI2405-125-220 Allow up to 45 days for manufacturing
$3153
Country of Origin
Canada, NAFTA eligible
Input Voltage
20-45VDC Suitable for 24V 28V 32V or 36V systems
39-86VDC Suitable for 48V, 64V or 72V systems
100-180VDC
Input Amps
120 max (with 20V input and 2400W output)
60A
23A
Output Voltage
120VAC ±10VAC user adjustable
230VAC ± 20VAC
Output Frequency
60 Hz pure sine wave, 50Hz user selectable
Frequency accuracy
Crystal controlled ±0.01 Hz
Max Output Current(s)
26 Amps 10 minutes maximum
13 Amps 10 minutes maximum
Max Output Power
2400 watts
Continuous Output Current
20 Amps
10 Amps
Continuous Output Power
2400 Watts
2400 Watts
Output current limit?
Yes
Operating Temperature Range
-40°C to +50°C
Humidity
0-95% non-condensing
Efficiency
>90 % at full power
Output Distortion
<2% at 2400W into a resistive load
Line Regulation
< ±2%
Load regulation
< ±2%
Isolation
Fully Isolated >1500 volts isolation from case to output
terminals or between input and output terminals. >500V isolation between
input terminals and case
Duty Cycle
Peak power for 10 minutes maximum, continuous power 24 hours per
day
Remote power on/off
No
Input Fuse
yes
Input Connections
DC In Phoenix VFK-4 terminal block for AWG 10-24
wire
Output Connections
AC OUT 2x - Universal AC Receptable S.203013 AC Out 1x Phoenix
VDFK4 terminal block
Protection
Over Voltage , Over Current, Short Circuit , Reverse Polarity ,
Over Load
Dimensions
355 x 236 x 238 mm (14 x 9.4 x 9.4 inches)

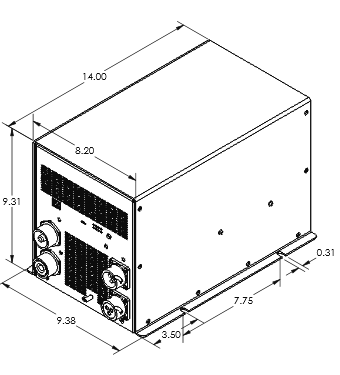

Drawings
see below
Weight
54.5 lbs, 27.4Kg
Audible Noise
34.5 dB at 3ft when fan is operating
Cooling
Fan comes on when needed
Vibration
Designed to meet MIL-STD-810F, Method 514-3 and Cat-1 Proc 1,
MIL-STD-461F, IPC-A-610
