12 volt DC/DC Converter for Charging the Ipod in a car

1.5 volt power supply

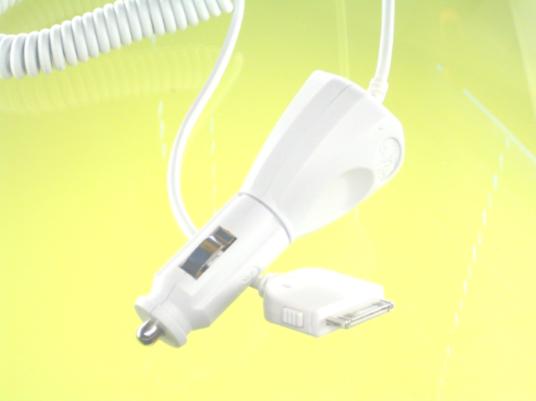

This "buck," or voltage reducing converter is designed to power devices requiring 12 volts, and has the connector for an Ipod attached.
......................


No Longer Avalable, sorry.
Model Number PST-DC12V-Ipod Car Charger
Input Voltage Range 12 VDC to 16 VDC
Peak Output Current 1 amp
Continuous Output current 500 mA
Output Voltage Nominal 12 Volts
Weight 100 g, 3 ounces

Output Current Output
Voltage with 12 volts input
Output Voltage with 14 volts input Output Voltage with 16 volts input
100 mA 10.5 volts 12 volts 11.9 volts
200 mA 10.3 volts 11.9 volts 11.9 volts
500 mA 9.8 volts 11.7 volts 11.7 volts
1000mA 8.9 volts 10.9 volts 11.3 volts
*Note: Devices using batteries can accept a wide range of input voltages,

Advantages:

OEM Battery Chargers Inexpensive switchmode DC/DC converter stabilizes voltage in automotive applications for charging Ipods.

OEM Battery Chargers Also can be used to provide regulated voltage in other applications requiring 12 volts from 12 to 16 volts sources.
