Wall mount 1 cell Lithium-Ion and lithium-polymer chargers 800 mA with universal AC input

Lithium-Ion Battery Pack Charger 3 cell pack
More Lithium Battery Chargers from PowerStream
Lithium-Ion Battery one cell charger 0.8Amps

Lithium-Ion Battery Chargers for OEMs.


This battery charger is a microprocessor controlled unit designed exclusively for charging 1 cell 3.6 V or 3.7 V. Lithium-ion and lithium polymer (lipo, li-po, Li-poly) battery packs. It has a simple led indicator to indicate the current operating mode of the charger. This battery charger complies with applicable safety agency requirements, and it is listed with UL, cUL and CE. This is an 4.2V peak battery charger.
PST-L0504S
Lithium-Ion Battery one cell charger 0.8Amps
For charging 1 cell lithium packs $13.50
Quantity 1-9 10-99 100+
  $13.50 $12.85 $10.90
plugset PST-WX12 ---- Output adapter barrel plug kit $7.00
SDY-C53F (ZHJX002)
adapters with a barrel connector input and screw terminal output
For adapting the barrel connector version to screw terminals $2.50 each
barrel connector alligator clip adapter Optional 18" alligator cord adapter $3.25

PST-L0504S 1 cell Pack Li-ion Battery Charger



NO

ITEM

UNIT

SPECIFICATION

REMARK

INPUT




Rating Input Voltage

Volts AC

100~240Vac 50/60Hz




Input voltage range

Volts AC

90~264VAC




Rating Input Current

Amps

0.1A rms

Test Conditions: INPUT: 220V OUTPUT: Full load



Max. input power

Watts

12 Watts



OUTPUT




Rating output voltage

V dc

4.2V




Output voltage range

V dc

3VDC ~ 4.2VDC




Suitable for Battery type



3.6V LI-ION




Constant Charge current

A

800 mA (+0.15A)




Constant Voltage

V

4.2V (+-0.1V)




Charge end current

A

<0.1




Typical charge time

hour

1.5~2 hours

Test Conditions:

For 1 Ah Li-ion pack



Max. output power

W

16.4W




Hold-on time

ms

20




Ripple current

mA

50

Test Conditions:

Input: 220VAC Output: Full load



Charge finish condition



V>8.3V + I<0.1A




LED color



Red: charging Green: finish/idle




Output short-circuit protect



Yes




Efficiency

%

>70%

Test Conditions:

At maximum load

Environment




Operate temperature

·C

-10 ~ +40

Full load & natural convection.



Operate humidity

%RH

< +90

Relative humidity, non-condensing.



Storage temperature

·C

-40 ~ +70




Storage humidity

%RH

0 ~ +95

Relative humidity, non-condensing.



Cooling



Natural convection




Temperature factor

%




Vibration resistance



5MM/50HZ/600S

Non-operating condition.



Impact resistance



1 meter drop test >= 3 times

Non-operating condition.

Mechanical




Weight

grams

120 grams




Size

mm

81x43x40 mm

Case only



Connectors



5.5 x 2.1 mm barrel, others available on special order in quantity, adapter plugs available (see below)



Safety




Max. temperature rise

·C

< 40 on casing

At any line and Max. Load



Safety standards

cUL, CE

GB4943 UL1950 EN60950




EMC standard



EN55022 B




MTBF

hours

30000




Limited power source

VA

50




ESD

kV

8.0




Hi-Pot Insulation

V

i/p to o/p: 3000 (1 min.)

For final unit, cut-off current =10mA

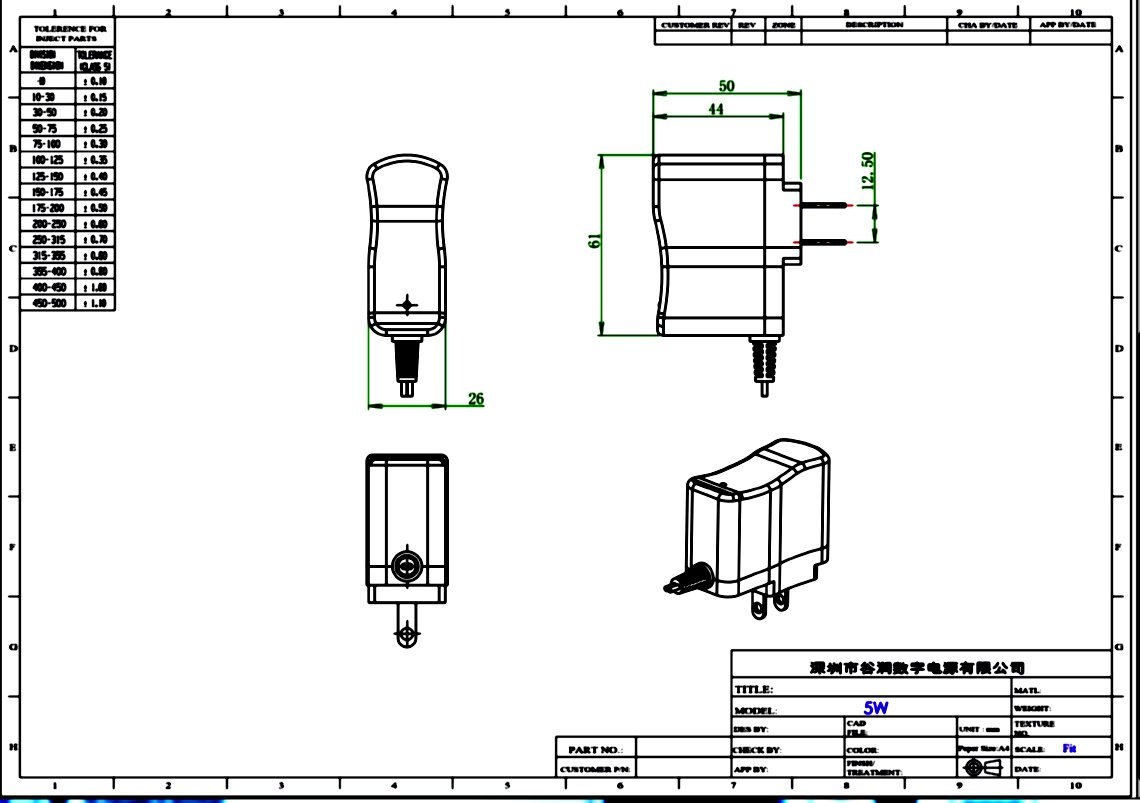

Drawing Drawing

Twelve optional DC Plugs slip over the 5.5 x 2.1 mm connector if desired.
plugset
  • 2.35 OD x 0.7 ID Barrel
  • 3.0 OD x 1.1 ID Barrel
  • 3.5 OD x 1.35 ID Barrel
  • 4.0 OD x 1.7 ID Barrel
  • 4.75 mm OD x 1.75 mm ID Barrel EIAJ-03
  • 5.0 mm OD x 3.5 mm ID with center pin
  • 5.5 mm OD x 1.5 mm ID type 2 Barrel
  • 5.5 mm OD x 2.5 mm ID Barrel
  • 6.3 OD x 3.0 ID center pin Barrel
  • 6.0 OD x 4.4 ID center pin Barrel
  • 7.4 mm OD x 5.0 center pin ID Barrel
  • 7.9 OD x 5.6 ID center pin Barrel

Specifications:

OEM Battery Chargers Input Voltage: 100 - 240 VAC, 50/60 Hz.

OEM Battery Chargers Output Voltage: Up to 4.2 Vdc controlled by battery charger

OEM Power Supplies Output current: up to 800 mA, controlled by battery charger

OEM Power Supplies Temperature: -10 to +45° C, Operating -40 to +70° C, non-Operating

Universal Power Input OEM Power Supplies and OEM Battery Chargers Humidity: Indoor 90% R.H. @ 35° Celsius, Non-Condensing
