3 Cell Lithium-Ion and lithium-polymer Chargers 1800 mA with universal AC input

Pack chargers for lithium-ion lithium polymer, li-poly, and li-po batteries. 12.6V peak
More Lithium Battery Chargers from PowerStream
Lithium-Ion Battery single cell charger PST-3P10-L0504
Lithium-Ion Battery Chargers for OEMs.

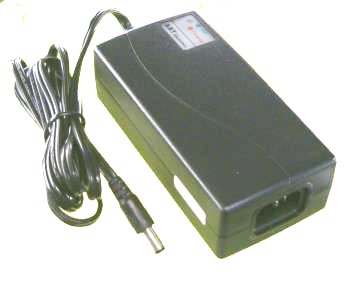

This 3-cell li-ion battery charger is a microprocessor controlled unit designed exclusively for charging three cell 10.8 V or 11.1 V. Lithium-ion and lithium polymer (lipo) battery packs. It has led indicators to indicate the current operating mode of the charger. This battery charger complies with applicable safety agency requirements of UL, cUL and CE.
Quantity 1-10 11-50 51-100 101-300 301+
PST-3PL3012 (INCLUDES A 3-Prong USA AC CORD) For charging 3 cell lithium packs
$42.50
$33.00 $26.30 $23.50 $18.10
barrel connector alligator clip adapter Optional 18" alligator cord adapter $3.25

plugsetPST-WX12 ---- Output adapter barrel plug kit  Barrel Plug Adapters for PST-3PL3012 $7.00


PST-3PL3012 3 cell Li-ion Battery Charger

NO

ITEM

UNIT

SPECIFICATION

REMARK

INPUT




Rating Input Voltage

V ac

100~240Vac 50/60Hz




Input voltage range

V ac

90~264Vac




Rating Input Current

A

0.3Arms

Test Conditions: INPUT:220V OUTPUT:Full load



Max. input power

W

40



OUTPUT




Rating output voltage

V dc

12.6V




Output voltage range

V dc

9.0VDC ~ 12.75VDC




Suit with Battery type

Ah

10.8V LI-ION




Constant Charge current

A

1.8 ± 0.2A




Constant Voltage

V

12.6+-0.15V




Charge end current

A

<0.18




Typical charge time

hour

4 hours

Test Conditions: 3.2Ah Li-ion pack



Max. output power

W

30W




Hold-on time

ms

20




Ripple current

mA

80

Test Conditions: Input: 220Vac Output: Full load



Charge finish condition



V>112.6V + I<0.18A


  Charge algorithm   Constant current while the battery draws the maximum charge current, then constant voltage when the voltage reaches the maximum.


LED color



Red: charging Green: finish/idle




Output short-circuit protect



Yes




Efficiency

%

>80%

At max. load

Environment




Operate temperature

·C

-10 ~ +40

Full load & natural convection.



Operate humidity

%RH

< +90

Relative humidity, non-condensing.



Storage humidity

%RH

0 ~ +95

Relative humidity, non-condensing.



Storage temperature

·C

-40 ~ +70




Vibration resistance



5MM/50HZ/600S

Non-operating condition.



Impact resistance



1 meter drop test >= 3 times

Non-operating condition.



Cooling



Natural convection



Mechanical




Weight

g

250




Size

mm

117X61X37

Casing only



Connectors



5.5 x 2.1 mm barrel, others available on special order in quantity




Max. temperature rise

·C

< 40 on casing

At any line and Max. Load



Agency approvals



cUL, listed under specification UL1310 (ANSI 1310), Class 2 battery charger, CE

ROHS available by special order



Design standards



GB4943 UL1950 EN60950




EMC standard



EN55022 B




MTBF

hrs

30000




Limited power source

VA

50




ESD

kV

8.0




Hi-Pot Insulation

V

i/p to o/p: 3000 (1 min.)

For final unit, cut-off current =10mA

Twelve optional DC Plugs slip over the 5.5 x 2.1 mm connector if desired.
plugset
  • 2.35 OD x 0.7 ID Barrel
  • 3.0 OD x 1.1 ID Barrel
  • 3.5 OD x 1.35 ID Barrel
  • 4.0 OD x 1.7 ID Barrel
  • 4.75 mm OD x 1.75 mm ID Barrel EIAJ-03
  • 5.0 mm OD x 3.5 mm ID with center pin
  • 5.5 mm OD x 1.5 mm ID type 2 Barrel
  • 5.5 mm OD x 2.5 mm ID Barrel
  • 6.3 OD x 3.0 ID center pin Barrel
  • 6.0 OD x 4.4 ID center pin Barrel
  • 7.4 mm OD x 5.0 center pin ID Barrel
  • 7.9 OD x 5.6 ID center pin Barrel

Specifications:

OEM Battery Chargers Input Voltage: 100 - 240 Vac, 50/60 Hz.

OEM Battery Chargers Output Voltage: Up to 12.6 Vdc controlled by lithium battery charger

OEM Power Supplies Output current: up to 1.8 A ±0.1 A max., controlled by the battery charger

OEM Power Supplies Temperature: -10 to +45° C, Operating -40 to +70° C, non-Operating

Universal Power Input OEM Power Supplies and OEM Battery Chargers Humidity: Indoor 90% R.H. @ 35° Celsius, Non-Condensing
