36 Volt 1.7A Desk Top NiCad and NiMH Battery Chargers with universal 100-240 VAC Input, charges packs with 24 to 30 cells

4 amp, 16-24 cell battery charger
More NiMH and NiCad Chargers

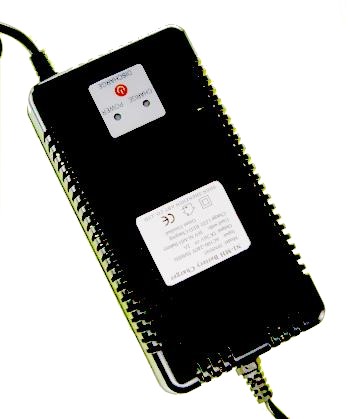

Desktop Charger for NiCad and NiMH Packs, 10 cells

Custom design and manufacture of state-of-the-art battery chargers, battery packs, UPS, and power supplies for OEMs in a hurry!


This a dT/dt fast battery charger with a microprocessor controlled charge and sense LED display and preset time-out. 100-240 VAC 60Hz / 50 Hz input, with fixed AC cord connector. Universal desk-top AC charger charges packs containing 30 cell, 36VDC NiMH or NiCad battery packs with peak charge detection. It can also charge packs containing 24 to 29 cells in series.
Pricing:
Quantity   1-10 11-50 51-100 101-300 301+
PST-N100-36 For charging 30 cell (24 cell -30 cell) packs $97.40
$79.50 70.75 $62.00 $58.80

General Information
Model PST-N100-36
Name 30 cell Ni-Cd/Ni-MH Battery Charger with dT/dt end of charge Detection
Type Battery Pack Charger for R/C, Robots, bicycles
ROHS ROHS available on special order

Technical Information
Rated input voltage 100-240 VAC, 50/60 Hz
No. of batteries 30 cell battery packs will also charge 24 cell (28.8V), 25 cell (30V), 26 cell (31.2V), 27 cell (32.4C), 28 cell (33.6V), and 29 cell (34.8V) packs
30 cells 36 volts nominal, 56 volts peak during charge
29 cells 34.8 volts
28 cells 33.6 volts
27 cells 32.4 volts
26 cells 31.2 volts
25 cells 30 volts
24 cells 28.8 volts
Battery size 3 AH to 17 AH
Charging current 2 amps or 2000mA, trickle less than 200mA
Charger type Ni-Cd/Ni-MH Battery Charger
Application R/C Models, robots, bicycles
Timeout 8 hours if the charger does not detect a full charge
Charging supervision dT/dt (0.4°C/minute) or Tmax>50°C or Vmax>1.59 V/Cell
Input Frequency 50-60 Hz
Battery type Ni-Cd/Ni-MH Battery
Style Desktop
Output power 140W maximum
Output voltage 56 volts peak
Output options included 3 pin connector standard, others on request
This is commonly called a CB microphone connector, an example of the mating connector is Switchcraft CB3MX
Plug wiring Pin 3 Negative (Black wire with connector removed)
Pin 2 Positive (Brown wire with connector removed)
Pin 1 NTC thermistor (Blue wire with conector removed)
The other side of the thermistor goes to the negative, Pin 3
Thermistor NTC type, 10K and B=3950
Weight 620 grams, 0.62 kg, 1 lb 6 oz
Cooling Built-in fan
Efficiency >80%
Size 186 x 100 x 60 mm, 7.3 x 4 x 2.4 inches
Environment -10°C to +40°C operating, -40°C to +70°C storage
Temperature rise <40°C rise on case under any line voltage and maximum rated load
Vibration, Impact 5mm, 50Hz, 600 Seconds, 1 meter drop 3 times
Protections Reverse Polarity, Short circuit protection
Safety UL, CE marked, designed to IEC335-2-29, Double insulated, indoor use
MTBF 10,000 hours by MIL-STD calculation
HiPot, ESD Hi-Pot 8000 V, 1 minute, ESD 3000V
LED Indications Single Bi-Color LED
Charging Red
Charged/Trickle Charging Green
Flashing (reverse polarity or thermistor missing) Error
Protections Short circuit protection
Reverse polarity protection
AC power cord 6 foot cord with USA two prong plug

Important note: Due to the erratic charge behavior of NiMH and NiCad batteries when first placed on charge there is a delay of up to 15 minutes before an accurate charge termination can be read. In worst case a battery can be taken off the charger and reattached, and charged for 15 minutes before the "charged" light comes on again. In addition, new packs should be charged and discharged several times before they "settle in" to a predictable charging condition.

Advantages:

OEM Battery Chargers Inexpensive desk top Nicad and NiMH Battery Charger with peak charge control circuit, universal AC input version.

OEM Power SuppliesSingle LED changes color to indicate state of charge.
