| DC-DC Converters |
Heavy Duty
5 Amp 48V 110VAC
Battery
Charger
 |
Heavy Duty
5 Amp 48V 220VAC
Battery
Charger |
Heavy Duty
11 Amp 48V 110VAC
Battery
Charger
 |
Heavy Duty
11 Amp 48V 220VAC
Battery
Charger
|
Heavy Duty
20 Amp 48V 110VAC
Battery
Charger
 |
Heavy Duty
25 Amp 48V 110/220VAC
Battery
Charger
 |
Part
Number
and Price |
PBCA310-110-48
$817
Allow up to 48 days for manufacturing |
PBCA310-220-48
$817
Allow up to 48 days for manufacturing |
PBCA610-110-48
$1051
Allow up to 48 days for manufacturing |
PBCA610-220-48
$1051
Allow up to 48 days for manufacturing |
PBCA1050-48
$1626
Allow up to 48 days for manufacturing |
PBCA1550-48
(replaces BCA1503-110-48,
BCA1505-48)
$1998
Allow up to 48 days for manufacturing |
| Country of
Origin |
Canada, NAFTA eligible |
Canada, NAFTA eligible |
Canada, NAFTA eligible |
Canada, NAFTA eligible |
Canada, NAFTA eligible |
Canada, NAFTA eligible |
| Nominal Input
Voltage |
110VAC |
220VAC |
110VAC |
220VAC |
110-220VAC |
110/220VAC |
| Input Voltage
Range |
105-125 VAC |
210-250VAC |
90 - 130 VAC |
180 - 260VAC |
85 - 264 VAC |
85 - 260 VAC |
| Absorption Stage
Voltage |
57.6V |
57.6V |
57.6V |
57.6V |
57.6V |
57.6V |
| Float
Voltage |
54.4VDC |
54.4VDC |
54.4VDC |
54.4VDC |
54.4VDC |
54.4VDC |
| Output Voltage
Adjustment |
±1V typical |
±1V typical |
±1V typical |
±1V typical |
±1V typical |
±1V typical |
| Max Output
Current(s) |
5
Amps |
5Amps |
11Amps |
11 Amps |
20 Amps |
25 Amps |
| Transition
current |
0.75 Amps |
0.75 Amps |
1.65 Amps |
1.65 Amps |
3
Amps |
3.8 Amps |
| Duty Cycle |
100% rated power 24 hours a day |
|
| Reverse Polarity
Protection? |
Yes |
|
| Current
Limiting? |
Yes |
|
| Over Temperature
shutdown? |
Yes |
|
| Short Circuit
Protection? |
Yes |
|
| Stages |
2 or 3 user selectable |
|
| Input Under
voltage Shutdown? |
Yes |
|
| Output
Overvoltage Crowbar? |
Yes |
|
| Output Crowbar
Trigger |
63.9V ± 2V |
|
| Dry Contact
Output Fail Relay? |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Can be left
Permanently Attached? |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Temperature
Compensated Charging? |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Temperature
Compensation Schedule |
-120 mV/°C |
-120 mV/°C |
-120 mV/°C |
-120 mV/°C |
-120 mV/°C |
-120 mV/°C |
| Operating
Temperature Range |
-25°C to +40°C |
-25°C to +40°C |
-25°C to +40°C |
-25°C to +40°C |
-25°C to +40°C |
-25°C to +40°C |
| Operating
Temperature Range with Derating |
-25°C to +50°C |
-25°C to +50°C |
-25°C to +50°C |
-25°C to +50°C |
-25°C to +50°C |
-25°C to +50°C |
| Derating |
2.5% per °C up to +50°C |
2.5% per °C up to +50°C |
2.5% per °C up to +50°C |
2.5% per °C up to +50°C |
2.5% per °C up to +50°C |
2.5% per °C up to +50°C |
| Efficiency |
>75 % |
>75 % |
>75 % |
>75 % |
>75 % |
>81% |
| Line Regulation
|
<±0.5% |
<±0.5% |
<±0.5% |
<±0.5% |
<±0.5% |
<±0.5% |
| Load Regulation
|
<±0.5% |
<±0.5% |
<±0.5% |
<±0.5% |
<±0.5% |
<±0.5% |
| Transient
Response |
<2V for 50% surge |
<2V for 50% surge |
<2V for 50% surge |
|
|
|
| Switching
frequency |
60 kHz |
60 kHz |
60 kHz |
|
|
|
| Output ripple
noise |
<25 mV rms |
<25 mV rms |
<50 mV rms |
<50 mV rms |
<50 mV rms |
<50 mV rms |
| Isolation |
>1500 volts isolation from case to any input terminal, >500V
isolation between case and any output terminal, >1500 Volts isolation input
to output. Transient voltage suppression. |
|
| Indicators |
Audio and visual indicators for constant current, low input
voltage, low output voltage, over temperature. Dry Contact output failure
relay. |
|
| Input Fuse |
5A MDA |
3A MDA |
10A MDA |
5A MDA |
25A MDA |
25A Breaker |
| Output Fuse |
10A AGC |
10A AGC |
20 x 2 ATC |
20 x 2 ATC |
15 x 2 ATC |
|
| Input
Connection |
AC cord |
AC cord |
AC cord |
AC cord |
AC cord |
AC cord |
| Connections |
4
contact screw terminal |
4
contact screw terminal |
4
contact screw terminal |
4
contact screw terminals |
4
contact screw terminals |
Flying Leads |
| Protection |
Over Voltage , Over Current, Short Circuit , Reverse Polarity ,
Over Load |
|
| Dimensions |
244 x 208 x 64 mm
(9.6 x
8.2 x 3.5 inches) |
244 x 208 x 64 mm
(9.6 x
8.2 x 3.5 inches) |
368 x 251 x 76 mm
(14.5
x 9.9 x 3 inches) |
368 x 251 x 76 mm
(14.5
x 9.9 x 3 inches) |
368 x 251 x 140 mm
(14.5
x 9.9 x 5.5 inches) |
411 x 212 x 100 mm
(16.16 x 8.4 x 4 inches) |

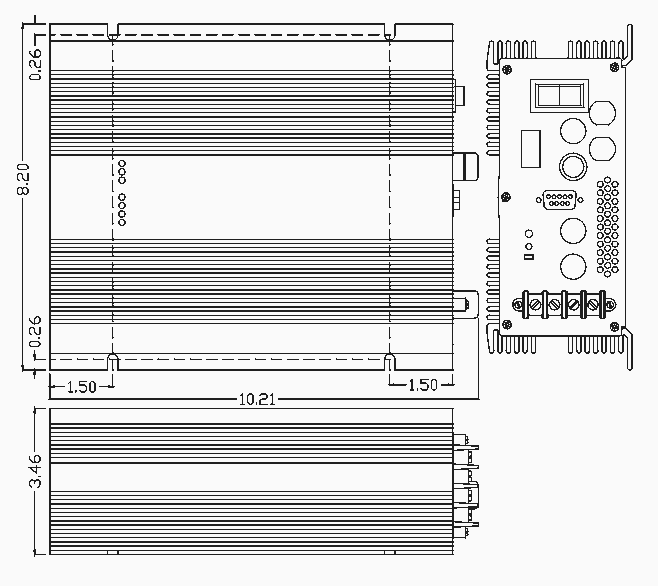

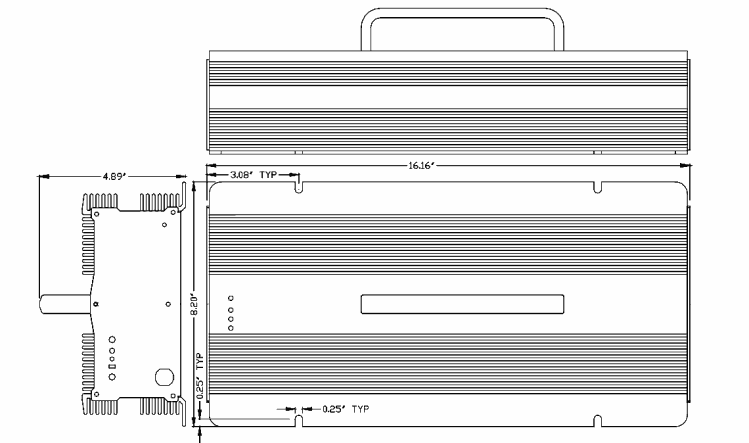

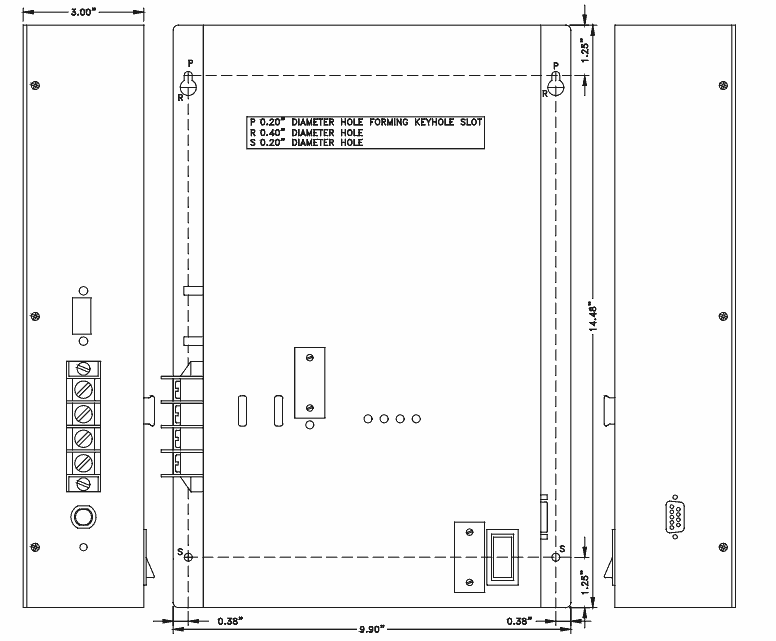

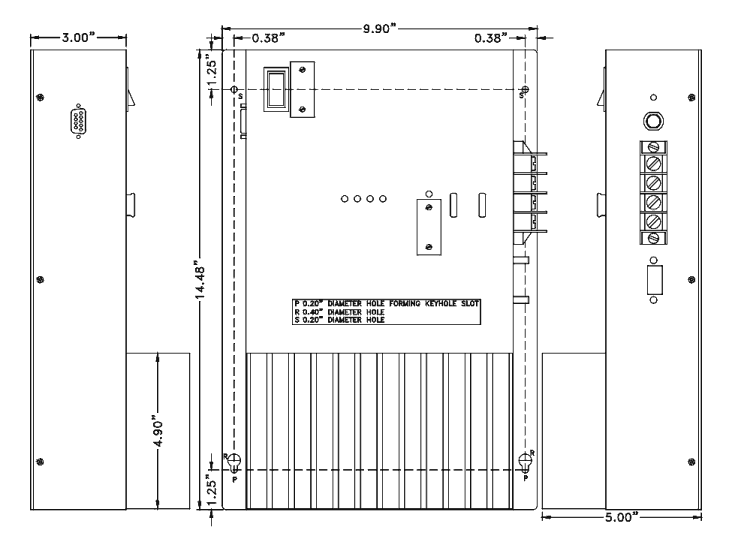

| Drawings |
Click Here for Drawing |
Click Here for Drawing |
Click Here for Drawing |
Click Here for Drawing |
|
|
| Weight |
3.4 Kg (7.5 lbs) |
3.4 Kg (7.5 lbs) |
3.3 Kg (7.2 lbs) |
3.3 Kg (7.2 lbs) |
5.5 Kg (12 lbs) |
14.4 lb ± 6.6 kg |
| Audible
Noise |
None |
None |
None |
3
years |
34.5 dB when fan is on |
34.5 dB when fan is on |
| Typical service
life |
87000 hours |
87000 hours |
87000 hours |
87000 hours |
87000 hours |
87000 hours |
| Warranty |
3
years |
3
years |
3
years |
3
years |
3
years |
3
years |
| |
BCA310-110-48 |
BCA310-220-48 |
BCA610-110-48 |
BCA610-220-48 |
BCA1000-110-48 |
BCA1505-110-48
BCA1503-110-48
BCA1500-110-48 |
| Approvals |
Built to meet UL458 and CSA 22.2.107.1 |
|
12 and 24 volt lead-acid chargers
