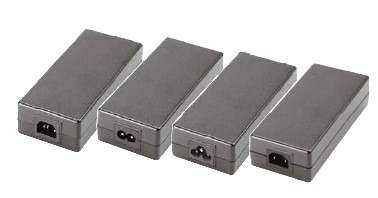

Genuine EDAC universal input ACDC power supply. This adapter Works with any TCS printer with 24VDC input |
| Model | Specification | Cable | Price | |
| EA11013C(P01) | 24V/90W | For TSC printers |
 |
$107.50 |
| Other compatible TSC printers | |
| TA210, TA300, TA310 | T800 |
| TTP-244 pro | T800 RFID |
| TTP-243 | |
| TTP-247 | |
| TTP-245, TTP-245Plus | |
| TTP-345 | |
| TTP-342E |
| Model number | EA11013C(P01) or (EA11011M-52) |
| Input voltage range | 100VAC to 240VAC |
| Peak output power | 106 Watts |
| Peak output current | 4.4 Amps |
| Continuous output power | 90 Watts |
| Continuous output amps | 3.75 Amps |
| Output voltage | 24 volts DC fixed at factory |
| Efficiency | Level VI or CoC Tier II |
| Operating temperature | 0 to 40°C |
| Storage temperature | -20 to 85°C |
| Protections | Input voltage protection Over current protection Over voltage protection Over temperature protection Short circuit protection |
| Burn in | 100% burn in |
| MTBF | >30,000 hours |
| Indicator | LED power-on |
| Line regulation | ± 2% |
| Load regulation | ± 5% |
| Ripple and noise | 1.2% Vp-p |
| Efficiency | >90% |
| Dimensions | 137 x 59 x 34 mm 5.4 x 2.3 x 1.3 inch |
| Weight | 405 g, 14.3 oz without power cord |
| Certifications | UL, cUL, TUV CB, FCC, CE |
| EMI | EN55022 |
| EMS | EN55024 |
| Operating temperature | 0-40°C |
| Storage temperature | -20°C to +85°C |
| AC Input connector | USA, call for others |
| DC Output connector | 18AWG cable UL1185 rated, 120 cm long (47 inches) |
|
|
|
| |||||||||
