NiMH/NiCad 9V charger

More NiMH and NiCad Chargers Click Here

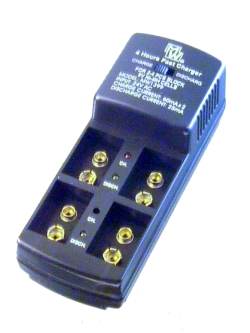

NiMH and NiCad 9V charger

This is a highly regulated, advanced-algorithm battery charger which will work with 9V transistor radio style NiMH and NiCad batteries.

Quantity		1-10
MW1399UC 4-station charger	For charging 9V batteries	$15

General Information

Model	MW1399UC
Name	Charger for NiMH and NiCad Batteries with 9V terminals

Technical Information

Rated input voltage	120 VAC, 60 Hz, 13.4W maximum
Battery Voltage	9VDC packs
Charging current	60 mA typical
Charger type	Nickel Metal Hydride or Nickel Cadmium chemistry
Style	Desktop with wall mount power adapter
Weight	100 grams, 0.1 kg, 0.2 pounds, 3.1 oz
Cooling	Natural convection, no fan
Size	123 x 50 x 42 mm, 2.6 x 2.4 x 1 inches
Environment	-10°C to +40°C operating, -40°C to +70°C storage
Vibration, Impact	5mm, 50Hz, 600 Seconds, 1 meter drop 3 times
Discharge feature	25mA
Safety	CE marked, UL, cUL
EMC	EN55022B
LED Indications	Power on, but no battery connected	Black or Green
	Charging	Red
	Discharging	Amber
