Battery discharge tester for low currents and tiny cells

battery discharge test equipment for tiny batteries
back view of the battery tester

Battery tester for small cells
Precision low current battery tester CBA HR $159.95
Optional 4-wire test leads
4-wire test leads
PST-WH4 $39.80
PowerStream and West Mountain radio have collaborated to engineer a battery discharge test instrument designed for tiny batteries. For general purpose testing the West Mountain CBA IV is excellent, but its low-end accuracy is only 25mA. Thus there is a need for a tester for low current, for applications such as bluetooth, LEB, IOT, and sensors.

In addition this tester can do pulse testing to simulate short transmitter pulses during an otherwise slow discharge.

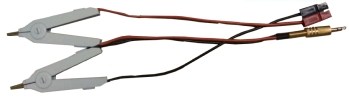

4-wire test leads
4-wire "Kelvin" test leads are available for accurate measurement of the battery voltage at the battery terminals, allowing for more accurate tests at higher discharge rates.
  • Load tester with discharge current range between 1 mA and 1000 mA
  • Optional 4-wire test leads measure voltage at the battery terminals for better accuracy
  • Measure continuous or pulsed discharge
  • Size: 71mm x 87mm x 37mm
Specifications
Test current range 1mA to 1 Amp
Test voltage range 0 to 8.2 Volts
