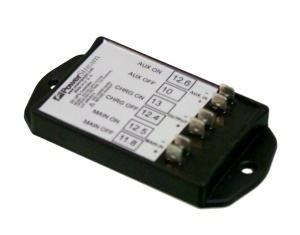

12 volt power supply and DC UPS for use in cars and buses, 3 amp

12 volt battery charger and UPS for cars and buses

Vehicle battery backup system. 12 volt DC UPS module keeps 12 volt equipment alive in cars. buses and taxis using an external sealed lead acid battery and acts as a battery back-up (BBU).

battery backups for buses, transit, fire trucks, vehicle instrumentation
Battery backups for buses, emergency vehicles and vehicle instrumentation
10 amp DC ups module for car electronics
Click here for the 12 amp version.
24 volt 10 amp car UPS module
Click here for the 24V 12A car UPS controller
complete UPS BBU including battery and indicator lights
Complete vehicle UPS with control module and 1.2AH lead acid battery
12 volt switchmode power supply with battery backup
AC input 6V, 12V, 24V, 48V battery backup power supplies

This little gadget solves several problems for electronics in cars and buses.

First it allows you to charge an external lead acid battery from the car's electrical bus.

Second it isolates the extra battery from the vehicle so it won't be discharged by the car electronics, and it won't try to participate in starting the car.

Third it powers your equipment in the car using the car electrical system, but switches to external battery power when the car's battery is stolen, or drops below a predetermined voltage due to engine cranking. No need to run an extra sense wire to the ignition system.

Fourth, it prevents the external battery from being over-discharged, keeping it from being damaged.

Fifth, it prevents your equipment from running the vehicles's battery down so the car can't be started. In one configuration it cuts off the car's battery when the voltage gets below 13.1 volts, then switches over to the external battery, in other words it switches over to the auxiliary battery when the engine is shut off and the alternator stops.

In another configuration the crossover voltage is lower, say 12.0 volts. This allows your equipment to run off the car's battery but cut off while the car's main battery still has enough power to safely start the engine.

To solve these problems we invented this automotive uninterruptible power supply control module, or car battery backup system. The idea is that you can connect the module to the car's electrical bus and it will charge an external 12 volt lead acid battery of your choice. Your equipment, which can be a small computer, telemetry equipment, or a car alarm, is connected to the module. This equipment runs off the automobile's electrical bus until the voltage of the bus drops below a preset voltage, the "N" voltage (from 13.1 to 11.9 volts, depending on your needs). Then the external battery takes over. When the external battery drops below the "P" preset voltage (Between 10 volts and 3 volts depending on your requirements) the power is cut off to either prevent damage to the external battery or to run your equipment as long as possible.
Model Price for quantity 1-9 Quantity 10-49 Quantity 50-199 Quantity 200+

replaces PST-DC-UPS-1212-3A-N13.1-P10
$48.50 $45.40 $43.00
(replaces PST-DC-UPS-1212-3A-N11.8-P10)
$48.50 $45.40 $43.00
(xx is your choice between 11.9 and 13.1 volts
yy is your choice between 10 and 8 volts)
$55.35 $52.00 $49.10
In-line fuse kit, consists of 2 in-line automotive spade fuse holders for the battery+ and load+ lines. Includes 10 amp fuses.
in-line fuse, click for larger image
$18.30 $15.90 $14.25

Detailed Specifications PST-DCUPS-3A
Max Charge Current 60-120 milliamps see graph below
Charging can occur with input voltages 10V to 15V (this range can be adjusted during manufacture, usually we set it to come on at 13V input, and to stop charging when the main battery drops to 12.4V. This allows charging when the car's engine is turned off.)
Maximum pass-through current 3-5 amps depending on duration

Also comes in 5 amp and 12 amp versions, click here
Maximum pass-through wattage 36-60 watts depending on duration
Type of battery charged Lead acid, VRLA, SLA, etc.
Nominal Battery Voltage 12 Volts
Battery Capacity 0.8 to 17+ Amp-Hours
Size of module 72 mm x 49 mm x 9.5 mm
2.80 inches x 1.92 inches x 0.37 inches
External battery connects when the input voltage to the module drops below 13.1 to 11.9 volts, see suffixes below
External battery is disconnected from the load when the external battery's voltage drops below 10 to 8 volts, see suffixes below
The available custom set-points are Main On, Main Off, Charger On, Charger Off, Aux On, Aux Off This document describes how to engineer and specify the 6 custom set-points if desired
Temperature Minimum ambient temperature -10°C (-40°C available upon request)
Maximum ambient temperature of 70°C
Connection 6 Faston spade terminals, clearly labeled
3 Ground terminals
External battery positive
Load positive
Car battery positive
Weight 3 ounces, 86 grams
Country of origin Made in USA, NAFTA eligible
3-D Model for mounting 3-D model in STL file
Ordering See the shopping cart below
The same battery backup controller in a box including a battery, fuse, and terminals. complete UPS BBU including battery and indicator lights

The PST-DC-UPS-1212 can be ordered with a range of "N" and "P" values, as explained in the following table.
Suffixes* Voltage at which car battery is cut of from the load Voltage at which auxiliary battery is cut off from the load Why?
N13.1 (most common choice) 13.1 ±0.2 volts   Load is disconnected from the car electrical bus when the ignition is switched off
N11.8 11.8 ±0.1 volts   Allows the load to be powered by the car battery most of the time but still start the car.
P10 (most common choice)   10 volts When deep cycling of the auxiliary battery is desired.
Other values Can be programmed to a wide range of custom values
**(For example PST-DCUPS-3A-N13.1-P10 would be a module which disconnects from the car battery when the car voltage falls lower than 13.1 volts and turns the auxiliary battery off when it falls to 10 volts.)

Hook up diagram:
Connection diagram
drawing of  the case
3-D CAD of the potting shell.
charge current graph
The charge current depends on both the car voltage and the state of charge of the battery. When the car is running the blue curve applies. Questions and Answers

1. Q: My application needs more pass-through current, what can I do?
A: We have a new module with power up to 120 watts. Click here for details .

2. Q: When the module turns off because both batteries are below their set points when does the module turn back on.
A: The module turns back on only when the car's voltage is restored to the proper charge voltage. A new auxiliary battery won't turn the module back on.

3. Q: What do you have for 24 volt systems?
A: Use the 24 volt version of the 10 Amp backup module which will use 24 volt auxiliary batteries in a 24 volt vehicle.

4. Q: I need a signal to tell me what the status of the UPS, whether it is on the main circuit, the auxiliary battery, or turned off.
A: Consider using the PST-DC-UPS-1212-5A, which signals the UPS status by sourcing 300 mA at 12V to run LEDs, relays, etc.
5. Q: I am charging a very small battery with this, the 400 mA charge rate is too high according to the battery manufacturer.
A. The charge algorithm used is kind to the batteries even when the maximum charge rate is over the C/3 rate specified by the battery manufacturers. For more information click on this link.
6. Do I have to run a sense wire up to the ignition system?
'A. No need to run an extra sense wire to the ignition system. The switching occurs when voltage levels are sensed, so no sense wires are needed.


The PowerStream UPS was a chance, lucky find. In spite of my electrical knowledge shortcomings, the system adapted beautifully to my Brammo Empulse R electric bike, - I’m sure the only such application to any Brammo model bike. The system does everything as advertised and despite my misgivings about the UPS controller, the final version with adjusted set-points works perfectly even to charging the backup battery. I now have a continuous “uninterrupted” power source required by my Scorpio motorcycle alarm system and I managed to fit everything into probably the tightest of available spare space of any bike, electric or ICE. Thanks to you and crew for the patience and knowledge that made this project happen, and happy holidays to you all.
--RB in Port St. Lucie, FL
