ED1010 120 watt car-style DC/DC converter 12 volt to 15V, 16V, 18V, 19V, 24 volt fixed output

April 18, 2023

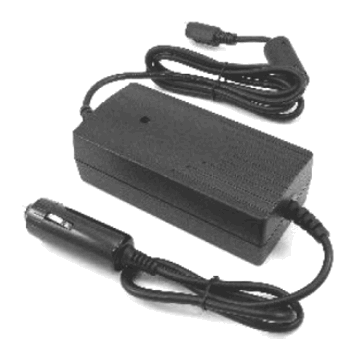

120 watt DC/DC converter for cars

High power 12 volt input DC/DC converters at low cost. Suitable for applications requiring high reliability, high efficiency or light weight

.

Retail or Wholesale

These are Boost Converters. They increase the voltage from the DC input to the DC output.

Model Number ED1010 DC to DC Converter
Page down for prices and to pick output connector and DC output voltage
Input Voltage Range 11 VDC to 16 VDC (see table below)
Peak Output Power 140 Watts
Peak Output Current 5A to 7A depending on voltage
Continuous Output Power 120 Watts
Output Voltage 12-24 volts DC fixed at factory
see table below
Efficiency >87 Typical
Operating Temperature 0 to 40°C
Storage Temperature -20 to 80°C
Isolation Although the output is isolated from noise, spikes, and voltage sags on the input, the input and output grounds are common, so this dc to dc converter is not usable in positive ground cars without totally isolating the equipment being powered from the frame of the car.
Protections Input voltage protection
Over current protection
Over voltage protection
Over temperature protection
Short circuit protection
Burn in 100% burn in
MTBF >30,000 hours
Indicator LED power-on
Line Regulation ± 2%
Load Regulation ± 5%
Ripple and noise 1.2% Vp-p
Efficiency >90%
Dimensions 115 x 55 x 34 mm
4.5 x 2.2 x 1.3 inch
Weight 300 g, 10.6 oz
Certifications e1 Mark, CE, ROHS
EMI EN55022
EMS EN55024
Operating Temperature 0-40°C
Storage Temperature -20°C to +85°C
DC Input connector Cigarette lighter plug with UL1185 DC cable
DC Output connector 18AWG cable UL1185 rated, 120 cm long (47 inches)
see table below for plug option

CAR ADAPTER
Model SPEC. OUTPUT CONNECTOR
ED1010-51 16V/7A 6.3x3.0x11mm $107.50

ED1010-52 19V/6.3A 6.5x1.4x11mm, EIAJ5 $107.50
ED1010-53 19V/6.3A 5.5x2.1x11mm $107.50
ED1010-54 19V/6.3A 5.5x2.5x12mm $107.50
ED1010-55 15V/8A 6.5x1.4 C-Pin $107.50
ED1010-56 19V/6.3A 3PIN HRS for Dell $107.50
ED1010-57 19V/6.3A 4.75x1.7 $107.50
ED1010-58 15V/8A 6.3x3.0x11mm $107.50
ED1010-59 19V/6.3A None $107.50
ED1010-60 20V/6A HRS 3PIN (P1/2 -, P3 +) for DELL $107.50
ED1010-61 20V/6A 5.0x2.5 $107.50
ED1010-62 16V/7A 5.5x2.5x11mm $107.50
ED1010-63 15V/8A 5.5x2.5x11mm $107.50
ED1010-64 20V/6A 5.5x2.5x11x90mm $107.50
ED1010-65 20V/6A 6.5x1.4x11mm, EIAJ5 $107.50
ED1010-66 24V/5A 5.5x2.5x11mm $107.50
ED1010-69
ED1010-78
24V/5A Power-Mini-Din connector, Pins 1, 2 positive, pins 3, 4, and shield negative
4 pin din connector
$107.50
Can power a Cognitive TPG DXLi thermal printer from a 12V vehicle.
ED1010-77 24V/5A 6.3 x 3.0 mm $107.50


CAR ADAPTER
Model SPEC. CABLE
ED1010A-50 15V/7A IBM 4PIN $107.50
ED1010A-51 13.8V/7.0A D01PB406NT connector obsolete, sorry
ED1010A-52 13.8V/7.0A 5.5x2.5x12mm $107.50
ED1010A-53 16V/7A 6.5x1.4x11mm $107.50
ED1010A-54 16V/7A 5.5x2.5 Right Angle Panasonic connector $107.50

ED1010B-50 18V/6.5A 5.5x2.1x11mm $107.50
ED1010B-51 18V/6.5A 5.5x2.5x11mm $107.50

ED1010C-50 19V/6.3A 6.3x3.0x11mm $107.50
ED1010C-51 19V/6.3A 5.5x1.0x11mm EIAJ4 $107.50
ED1010C-52 19V/6.3A 5.5x2.5x12mm $107.50
ED1010C-53 19V/6.3A 4PIN DIN $107.50
ED1010C-54 19V/6.3A 5.5x1.0x11mm $107.50
ED1010C-56 19V/6.3A 4PIN DIN with lock( pin1:+, pin3/pin4:-) $107.50
ED1010C-58 19V/6.3A 5.5x1.7x11 $107.50
ED1010C-XX 19V/6.3A Many other connectors available, please call
ED1010-71 19V/6.3A 7.4 mm OD with center pin for HP $107.50

ED1010D-50 20V/6A 7.4x0.6x13mm $107.50
ED1010D-51 20V/6A 3PIN (Aligator) $107.50
ED1010D-52 20V/6A 5.5x2.5x9.2mm 3 steps $107.50
ED1010D-53 20V/6A None, stripped and tinned $107.50
ED1010D-54 20V/6A Dell D Series 90W $107.50
ED1010D-55 20V/6A 5.5x2.5x12mm $107.50
ED1010D-XX 20V/6A Many other connectors available, please call

ED1010E-50 24V/5A stripped and tinned & labeled $107.50
ED1010E-51 24V/5A SPIP 10mm Tim 5mm $107.50

ED1010E-24V-5.5x2.1 24V/5A 5.5x2.1mm add_to_cart.gif
ED1010E-24V-5.5x2.5 24V/5A 5.5x2.5mm add_to_cart.gif
ED1010E-XX 24V/5A Other connectors available, please call $107.50

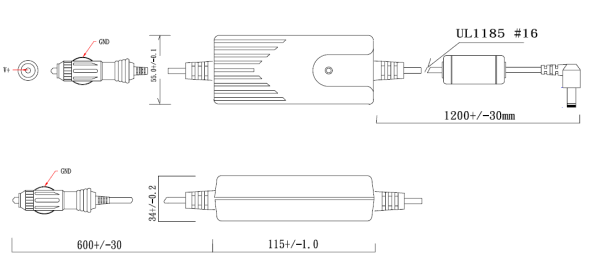

dimensioned drawing of the ED1010

Advantages:

OEM Battery Chargers Inexpensive high current DC/DC converter regulates and stabilizes voltage in automotive applications.

OEM Power Supplies High efficiency >85%.
