24VDC, 3500mA desktop power supply

24V, 84W low voltage switching power supply, 3.5A maximum

AC regulated external power supply, switchmode 24 volt power supply, 3.5Amps maximum with mounting flange, double insulated.

This is an 84 watt compact, high quality, switchmode regulated power supply. It has a short, fixed AC cord, a 12 foot output cord with a barrel connector and universal AC input (100VAC to 240VAC). The mounting flanges are removable. Full specifications are given below.

Quantity	1-10
Price PST-AC2435	Obsolete, sorry. Please consider our other 24VDC power supplies

Desktop power supply 2 x 1.2 x 4.3 inches with input socket for using international cords.

GENERAL SPECIFICATIONS	PST-AC2435
Safety Compliance:	cULus, double insulated, indoor use UL60950-1 EN55024 EN6100-3-2 EN6100-3-3 UL1310

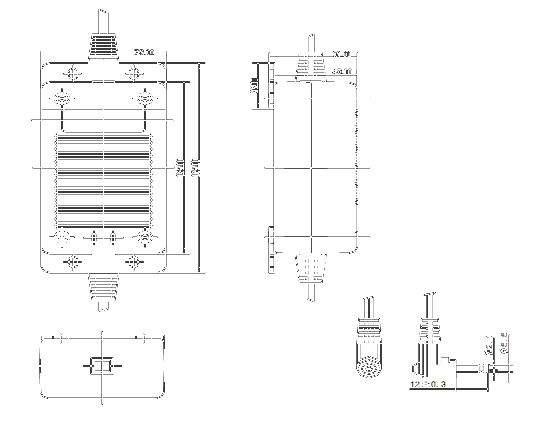

Size	70 mm x 51 mm x 135 mm (164 including flange), 2.8 x 2.1 x 5.3 inches (6.5 inches including flange)
Weight:	1.2 lbs, 540 grams
Cooling:	Free air convection
Construction:	Impact resistant thermo-plastic enclosure case
INPUT SPECIFICATION
Input Voltage:	Input Voltage: rating 100-240VAC
Input Connector:	Fixed cord two prong NEMA 1-15P plug Input cord 13 inches long, 35 cm
Input Frequency:	47-63Hz
OUTPUT SPECIFICATION
Output Voltage:	24.0 Volts
Output Current:	3.5 Amps, 3500 mA
Output Wattage:	82 Watts maximum
Output accuracy	±0.7VDC
Load regulation	±0.7VDC
Output ripple	<200 mV p-p
Hipot Test	3750 VAC for 1 minute with less that 5 mA leakage current
Leakage Current	Maximum 0.25mA with input voltage 240VAC 50Hz
Insulation	Insulation Resistance Between Electric parts and Output end, Electric parts & shell, test with 500VDC >50 MOhms
Output Connector:	5.5 mm OD x 2.1 mm ID
Output Polarity	Center Positive
Output Cord	12 foot, 2 conductor 18 AWG wire, FT1 zip cord type AWM

A 5.5 x 2.1 mm barrel connector is supplied

Optional DC Plugs slip over the 5.5 x 2.1 mm connector if desired.

2.35 OD x 0.7 ID Barrel
3.0 OD x 1.1 ID Barrel
3.5 OD x 1.35 ID Barrel
4.0 OD x 1.7 ID Barrel
4.75 mm OD x 1.75 mm ID Barrel EIAJ-03
5.0 mm OD x 3.5 mm ID with center pin
5.5 mm OD x 1.5 mm ID type 2 Barrel
5.5 mm OD x 2.5 mm ID Barrel
6.3 OD x 3.0 ID center pin Barrel
6.0 OD x 4.4 ID center pin Barrel
7.4 mm OD x 5.0 center pin ID Barrel
7.9 OD x 5.6 ID center pin Barrel

Advantages:

Universal input 3.5A switchmode power supply with fixed 24 volt output voltage.
