24 volt to 12 volt DC/DC Converters 12Amp 144W and 20 Amp, 240W

more converters with 24VDC input
More converters with 24VDC input
Heavy Duty and Military Grade 24V to 12V DC/DC converters
  DC-DC converter 24V to 12V at 140 watts, common ground DC-DC converter 24V to 12V at 140 watts, common ground 40 amp heavy duty DC/DC converter 24VDC to 12VDC
5 Amp 12 Amp common negative this page 20 Amp common negative this page 40 Amp Fully Isolated
These are fully regulated switching power converters (switchmode) with wide input voltage range, designed to provide regulated 13.8 volt power for equipment in 24 volt vehicles or 28 volt vehicles. These are attractive, reliable, robust DC/DC converters good for fork lifts, off-road, construction, military, marine and recreational equipment. They are ultra-quiet both electrically and acoustically.

To determine the amperage you need just add up the watts of all the equipment to be powered and divide by 13.8 volts.

These converters are common ground, or common negative, and will work in all vehicle applications with negative ground.
DC-DC Converters 12 Amp
DC to DC Converter
DC-DC converter 24V to 12V at 140 watts, common ground
20 Amp
DC to DC ConverterDC-DC converter 24V to 12V at 140 watts, common ground
Part Number
and Price
PVTC140-24-12
$189
Allow up to two weeks for manufacturing
PVTC240-24-12
$257
Allow up to two weeks for manufacturing
Country of Origin Canada, NAFTA eligible
Input Voltage 20VDC to 35VDC
Output Voltage 13.8 VDC
(12V available, ask at time of order)
Max Output Current(s) 15 Amps
5 minutes maximum
23 Amps
5 minutes maximum
Max Output Power Peak 207 watts 314 Watts
Max Output Power (continuous) 165 Watts
(12 Amps)
276 Watts
(20 Amps)
Duty Cycle 100% rated power 24 hours a day
Short circuit protection? Yes
Operating Temperature Range 0°C to +40°C
Derating 2.5% per °C up to +60°C
Efficiency >88 %
Line Regulation <±0.5%
Load Regulation <±0.5%
Transient Response <1V for 50% surge
Switching frequency kHz
Output ripple noise <10 mV rms
Noise inserted on the input terminals <10 mV rms
Isolation >500 volts isolation from case to any terminal, Common negative
Input Fuse 12A MDA 20A MDA
Connections Screw terminals
Protection Over Voltage , Current Limiting, Output Over Voltage Crowbar, Over Current, Short Circuit , Reverse Polarity , Over Load
Dimensions 201 x 102 x 61 mm
(7.9 x 4 x 2.4 inches)
Drawings Click Here for Drawing
Weight 3.2 Kg (7 lbs)
Audible Noise None
Warranty 3 years
Approvals cETLus pending

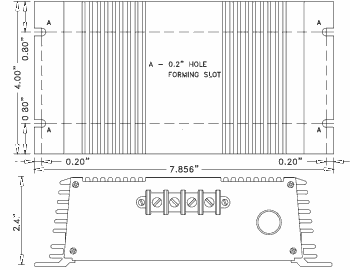

drawing of the PVTC120 showing dimensions and mounting holes

OEM Battery Chargers High Current Switchmode DC/DC Converters.

OEM Battery Chargers High efficiency.

OEM Power Supplies Excellent line and load regulation, low noise.

Universal Power Input OEM Power Supplies and OEM Battery Chargers Wide input voltage range suitable for 24 Volt, and 28 Volt systems.
