100 Watt 12VDC to 24VAC Pure Sine Wave DC/AC Inverter for CCTV

24VAC inverters, DC converters, battery backups
More 24VAC low voltage power options

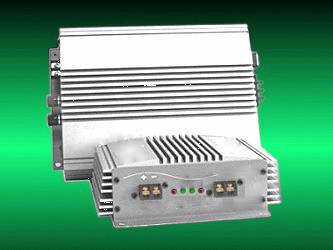

12 volt to 24 VAC inverter, 100 watts
Unique 24 volt AC inverter rated at 100 watts for use with CCTV and Solar installations. Suitable for 24VAC irrigation systems, and even 24VAC doorbells. Converts 12 volt dc to 24 volts AC.
40 Watt 24VDC to 24VAC inverters . and 40 watt 48VDC to 24VAC inverters are also available

Quantity   1-10 11-100 101-500 501+
PST-INV1224-100W-60Hz 100 watt inverter, 12VDC in, 24VAC out No longer available, please consider the 40W version 12 volt direct current to 24 volt alternating current 60 Watt  pure sine wave inverter
(allow 1-2 weeks)
50 Hz version of the 100 watt 12 volt DC to 24 volt AC inverter
PST-INV1224-400Hz 400 Hz Call

PST-INV1224-100W Function: DC/AC Inverter with 24VAC output, 100W
Country of Origin USA, NAFTA qualified
Output power 100VA continuous (100 Watts) (24VAC 4.2 Amps nominal)
120VA for 1 minute at 50% duty factor( 1 minute above 120VA, one minute below 100VA
Output Current 4.2 Amps continuous, 5 amps peak
Input voltage DC 11VDC to 14.5VDC startup,
10VDC to 15VDC operating.
Output voltage AC 24VAC
Output voltage regulation ± 10%
Output wave form Pure sine wave
Output frequency 60Hz ± 1% (50Hz available)
Standby current 0.2A, 200 mA typical
Operating Temperature -10°C to +45°C
Efficiency 90% max.
Cooling Convection cooling, no fan
Under voltage protection Unit will shut itself down when the input voltage is less than 10VDC ±5%. It will restart when the voltage is above 11VDC
DC Input Screw terminals
AC output Screw Terminals
Protections Output short
Polarity reverse
Under voltage input protection
Environment Indoor use, or protected from the weather and condensation.
Isolation DC input is galvanically isolated from the AC output, greater than 100V hipot
Dimensions 200 X 200 X 70 mm , 8 x 8 x 2.75 inches
Weight 2.1 kg, 4.6 lbs
LEDs Green--on when the input voltage is in range
Red--over temperature warning
Red--output current is turned off due to over temperature
Green--output power is within normal limits
More options Please ask if you need different input voltages, output voltage, output power, surge protection, connectorization, or form factor.


OEM Battery Chargers Inexpensive DC/AC power inverter light weight and small size will boost 12vdc to 24vac.

OEM Battery Chargers Makes 24 VAC equipment usable in 12 VDC installations. DC to AC inverter can work with solar or battery back-up systems.

OEM Power Supplies Useful for solar powered security systems. Also useful for irrigation system controllers.

Universal Power Input OEM Power Supplies and OEM Battery Chargers This product is now in production
