| PIVS50-12/24-D1-60Hz |
12V input, 50VA, 60Hz |
$919 |
$853 |
 |
| PIVS50-12/24-D1-50Hz |
12V input, 50VA 50Hz |
$919 |
$853 |
|
| PIVS50-24/24-D1-60Hz |
24V input, 50VA 60Hz |
$919 |
$853 |
|
| PIVS50-24/24-D1-50Hz |
24V input, 50VA 50Hz |
$919 |
$853 |
|
| PIVS50-36/24-D1-60Hz |
36V input, 50VA, 60Hz |
$919 |
$853 |
|
| PIVS50-36/24-D1-50Hz |
36V input, 50VA, 50Hz |
$919 |
$853 |
|
| PIVS50-48/24-D1-60Hz |
48V input, 50VA, 60Hz |
$919 |
$853 |
|
| PIVS50-48/24-D1-50Hz |
48V input, 50VA, 50Hz |
$919 |
$853 |
|
| PIVS50-125/24-D1-60Hz |
125VDC input, 50VA 60Hz |
$919 |
$853 |
|
| PIVS50-125/24-D1-50Hz |
125VDC input, 50VA 50Hz |
$919 |
$853 |
|
| PIVS50 series |
Function: DC/AC Inverter with 24VAC output |
| Country of origin |
Canada,
NAFTA qualified |
|
Output power |
50VA
continuous (40 Watts into a resistive load) (24VAC 2.1 Amps nominal)
|
| Output current |
2.1 Amps
continuous |
|
Input voltage |
12V
±15% (minimum startup voltage 10.5V)
24V ±15%
36V
±15%
48VDC ±15%
125VDC ±15% Depending on model |
|
Output voltage |
AC
24VAC |
|
Output voltage regulation |
±
3% line and load regulation from no-load to full-load |
|
Output wave form |
Pure sine
wave |
|
Output frequency |
60Hz or
50Hz |
| Temperature drift |
< 0.03%
per °C |
| Harmonic distortion |
Less than
6% THD at full load |
| Load
crest factor |
2 at 90%
load |
| Output noise |
200mVrms
with a 20MHz bandwidth |
|
Efficiency |
80%
typical at full load, depends on input voltage |
| Operating temperature |
-25°C
to +55°C extended temperatures available |
|
Cooling |
Convection cooling, no fan |
| EMI |
EN55022
Class A with margins, conducted and radiated |
|
Protections |
Output
short
Current limiting
Polarity reverse
Output overvoltage protection
at 30VAC
Inrush current limiting
Internal safety fuse
Under voltage
input |
| Under voltage protection |
Unit will
not be damaged if the input voltage is too low |
| Electrical connections |
Internal
barrier block terminal accessable through sealed cable glands. |
| Cooling |
Through
base to customer's chassis or heat sink, and natural convection to the IP66
enclosure |
| AC
output |
Screw
Terminals |
| Isolation |
Floating
output. DC input is galvanically isolated from the AC output, greater than 700V
to the chassis, greater than 1000 volts input-to-output |
| Environmental protection |
IP66
enclosure, conformal coated and ruggedized circuits |
| Shock and vibration |
IEC 61373
Cat 1 A&B |
| Humidity |
5-100%
including condensing |
| MTBF |
140,000
hours at 45°C |
| Indicators |
No
indicators |
| ROHS |
Fully ROHS
compliant |
|
Dimensions |
220 x 120
x 80 mm
8.7" x 4.7" x 3.1" |
|
Weight |
2.4 kg,
5.3 lbs |
| Standards |
Designed
to meet C22.2 No. 107.1-01, UL458 and EN60950-1 but not agency tested |
| More
options |
Please ask
if you need different input voltages, output voltage, output power, surge
protection, connectorization, or form factor. |
| Warranty |
2 years
subject to application within good engineering practice |

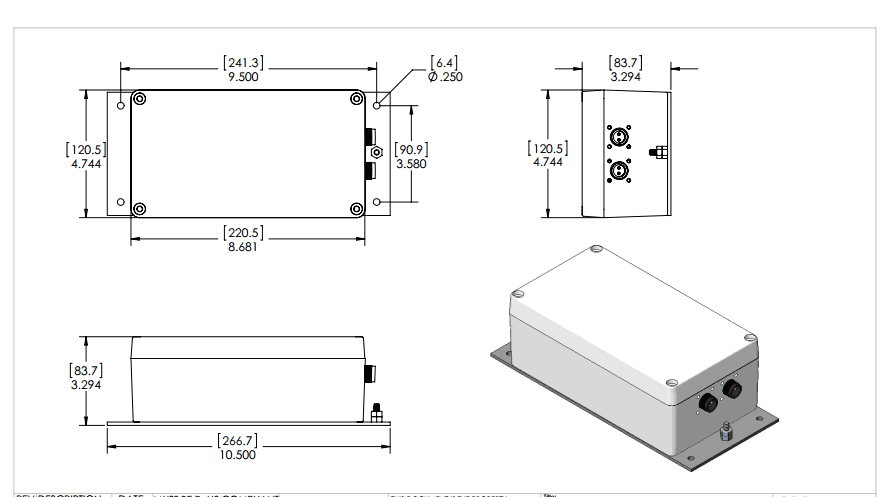

| Drawing |
Case drawing |
Advantages:
Outdoor use DC/AC power inverter light weight and small size will boost
12vdc to 24vac.
Makes 24 VAC equipment usable in 12 VDC outdoor installations. DC to AC
inverter can work with solar or battery back-up systems.
Useful in oil field solar powered security systems. Also useful for irrigation
system controllers. |
