Reformed Methanol Fuel cell, 25 watts continuous Methanol fuel cells from PowerStream


Methanol fuel cells use liquid methanol to generate electricity. They are useful in places where low power is needed for a long period of time in a small package. These are now commercially available.

  • Up to 25W of continuous maximum power
  • Weighs just 1.24 kg (2.7 lbs)
  • Dimensions 5.9 x 9.1 x 1.7 inches
  • Limited Safety Assessment Report (SAR) from the Army Power Division of the U.S. Army’s Research Development and Engineers Command (RDEC) and Communications- Electronics Research Development and Engineering Center (CERDEC), which certified it safe to be worn by soldiers in the field and used to power portable devices.
  • MIL-STD-810F
  • 250cc (350 gram, 12 oz) cartridge of methanol gives 180 W-H of power
  • Larger tanks are available, up to 18 liters, or 12,960 watt-hours
  • Output voltage is factory set between 12V and 30V.
  • 12 minute start-up time
  • 100% made in the USA, which makes export to Canada and Mexico easy.

Model Price 1-9 10-49 Delivery
PST-XX25 Not available at this time, sorry
1-4 weeks
  PST-XX25
Nominal Output voltage is set at the factory
12VDC to 30VDC
Start-up Time 12 Minutes to 20 Minutes depending on whether internal battery is fully charged
Continuous power maximum
25 Watts
Output connector
Operational modes On/Off/Standby

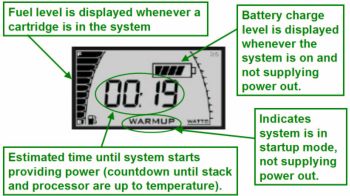

Fuel Cell Status Indication
Night Vision compatible LCD
Fuel Methanol/Water mixture
Standard Fuel Cartridge
250 cc
Standard Fuel Cartridge Duration
9 hours at 20 watts

Weight
2.7 pounds grams
1.24 kg
Dimension
5.9 x 9.1 x 1.7 inches

(15 x 23 x 4.3 cm)

Operating Altitude 0 to 6000 Feet
Operating Ambient Temperature for charge controller
-20° to +40 °C

-4°F to +104 °F
Click here for PDF Operating Manual
Click here for PDF Data Sheet
Click here for Software PDF Manual
