Converters for 12 Volt and 24 Volt vehicles and trailers


trailer controller, 12V 24V

Towing a 24V ex-military trailer with a 12 Volt vehicle can be easy or hard, depending on how many functions you need to operate. The hardest function is the brakes, the easiest function is the running lights, blinkers brake lights and turn signals fall in between.
Likewise, 24V vehicles have a similar problem with 12V trailers.
Furthermore, a full NATO military trailer connector will have provisions for rear fog lights, right and left side running lights, stop lights (brake lights) reversing lights, brake wear sensor, parking brake employed under loss of air pressure, and lift axle.

In addition there are various types of connectors that might need to be interfaced.

The following chart will help you decide which of our products will meet your needs.

Trailer Controller Selection Chart



Vehicle
Voltage

Trailer
Voltage

Vehicle
Connector

Trailer
Connector

Product

!2V vehicle to 24V military trailor controller and interface 12V 24V 7-pin-sae-560 trailer connector
7 Pin SAE 560 12V
7-pin-sae-560 trailer connector
7 Pin SAE 560 24V
ETC1224B
commercial vehicle to military trailer converter controller interface 12V 24V 7-pin-sae-560 trailer connector
7 Pin SAE 560 12V
commercial vehicle
12 prong NATO socket MS 75021-2
12 Pin Nato 24V
military trailer
ETC1224-7
24V to 12V trailer converter with 24V or 12V input, auto selecting 24V
12V
(this unit accepts either 12V or 24V input on the same connector, and autoselects)
12V 7-pin-sae-560 trailer connector
7 Pin SAE 560
6 foot cable with ring terminals
6 foot cable with ring terminals
UTC2412BD
24V European Truck to 12V American Trailer interface controller 24V 12V 7-pin-sae-560 trailer connector
7 Pin SAE 560 24V
European 24V vehicle
7-pin-sae-560 trailer connector
7 Pin SAE 560 12V
12V American Trailer

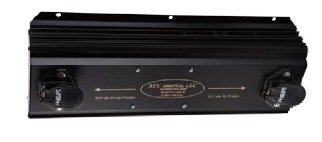

UTC2412B
24V vehicle 12V trailer interface controller 24V 12V 7-pin-sae-560 trailer connector12 prong NATO male MS 75021-1
Both styles of 24 Volt input plug are present on the controller
7 prong JAE 560 plug and cable
7 Pin JAE plug on cable
UTC2412-7B
UTC2412-7H 12V and 24V vehicle to 12V trailer converter 24V 12V 7-pin-sae-560 trailer connector12 prong NATO male MS 75021-1
Input can be a 12V American vehicle or a 24V NATO vehicle
6 foot cable with ring terminals
Output 4 foot cable with ring terminals for a 12V trailer
UTC2412-7H
24V NATO vehicle to 12V American trailer adapter 24V 12V 12 prong NATO male MS 75021-1
12 Pin Nato 24V
7-pin-sae-560 trailer connector
7 Pin SAE 12V
UTC2412-8
24V to 12V trailer converter, NATO to RV trailer 24V 12V 12 prong NATO male MS 75021-1
12 Pin Nato 24V
7 prong rv connector
7 Prong RV connector 12V
UTC2412-RVEB
24V to 12V trailer converter with flying leads 24V 12V 6 foot cable with ring terminals
12 Foot wires with ring terminals 24V
6 foot cable with ring terminals
12 Foot wires with ring terminals, 12V
UTC2412-GD
