Wall Mount NiCad/Nickel Metal Hydride Chargers

Wall Mount Charger for NiCad and NiMH Packs
4 amp, 16-24 cell battery charger
More NiMH and NiCad Chargers
NiCad NiMH 10 cell  Battery Pack Charger with universal AC input
1.8 amp universal AC input charger for 10 cell NiMH and NiCad batteries
NiCad NiMH Battery Pack Charger 4-12 cell packs
1 to 1.5 amp off-the-shelf charger for 4 to 12 cell NiMH and NiCad batteries

Lowest cost quality charger for NiMH batteries.


Wall Mount 1 Amp Consumer style NiMH/NiCad Chargers

Custom design and manufacture of state-of-the-art battery chargers, UPS, and power supplies for OEMs in a hurry!


This a semi-custom -delta V detecting fast charger with a microprocessor controlled charge, sense LED display and preset time-out.

Input

110V, 60 Hz

Battery Voltage

Factory selected 4.8, 6, 7.2, 8.4, 9.6, 10.8, 12

Maximum Charge Current

1000 mA Maximum

Maximum battery capacity

Some of the chargers time-out after 6 hours, limiting the size of the battery pack to 6AH or less. Others time-out after 16 hours, allowing battery packs up to 16AH to be charged. See the chart below.

Charge Termination Method

-Delta V

LED Indication

Black = No Battery

Red = Fast Charging

Green = Charged + Trickle Charge

Size

122 x 76 x 60 mm

Shipping Weight

856 grams

Net Weight

800 grams

Protection

Reverse Polarity Protection

Connectors


The chargers in stock all have either the "plug" side of the "Tamiya" connector or the power connector kit. For the Tamiya connector the "receptacle" side is on the battery pack.

Other connectors are available with quantity purchase.

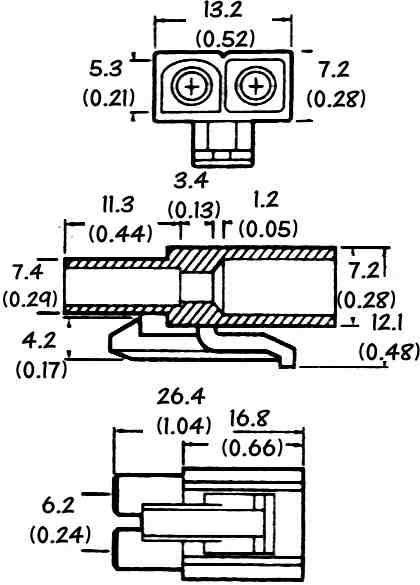

"Tamiya" Connector
Tamiya style connector for battery packs and chargers
Plug of the Tamiya connector system (female or receptical side). For more information on this connector system click on the drawing.
Power connector kit More details below


Model

Battery Voltage Connector Style (See connectors below) # of Cells in Battery Maximum Fast Charge Current Pack Maximum Capacity in Amp Hours Trickle Charge Current Price 1-10 Price 11-100 Price 101-500 Price 501-1000 Price 1001+
PST-5830-5-3-16H-Tamiya 6.0V Tamiya styleª 5 1000 mA 16 AH 35 mA $17.65
$17.65 $15.30 $12.30 $10.50
PST-5830-7-16H-Tamiya 8.4V Tamiya styleª 7 1000 mA 16 AH 3z`5 mA $9.99
$9.99 Closeout
sale

PST-5830-8-16H-Tamiya 9.6V Tamiya styleª 8 1000 mA 16 AH 35 mA $9.99
$9.99 Closeout
sale

PST-5830-9-16H-Tamiya 10.8V Tamiya styleª 9 1000 mA 16 AH 35 mA $9.99
$9.99 Closeout
sale

PST-5830-10-3-16H 12.0V Power plug Assortment ª 10 1000 mA 16AH 35 mA $9.99 add_to_cart.gif $9.99 Closeout
sale

PST-5830-12-16H/1 14.4V Power plug Assortment ª 12 cells 1000 mA 16 AH 35 mA $17.65
$17.65 $15.30 $12.30 $10.50
PST-5830-2-3 2.4V Power Assortment 2 800 mA 6 AH 35 mA Obsolete click here for another 3cell charger
PST-5830-3-Tamiya
3.6V Tamiya styleª 3 800 mA 6 AH 35 mA Obsolete, click here for more 3 cell chargers
PST-5830-4-Tamiya 4.8V Tamiya styleª 4 1000 mA 6 AH 35 mA Obsolete, click here for more 4 cell NiMH and NiCad chargers
PST-5830-4-3 4.8V Power Assortmentª 4 1000 mA 6 AH 35 mA No longer available, click here for more 4 cell chargers
PST-5830-5-Tamiya 6.0V Tamiya styleª 5 1000 mA 6 AH 35 mA No longer available, see below for more 5 cell chargers
PST-5830-5-3 6.0V Power Assortmentª 5 1000 mA 6 AH 35 mA No longer available, see below for more 5 cell chargers
PST-5830-6-Tamiya 7.2V Tamiya styleª 6 1000 mA 6 AH 35 mA No longer available, click here for more 6 cell chargers
PST-5830-6-3-16H 7.2V Power Assortmentª 6 1000 mA 16 AH 35 mA No longer available, click here for more 6 cell chargers
PST-5830-7-Tamiya 8.4V Tamiya styleª 7 1000 mA 6 AH 35 mA No longer available, click here for more 7 cell chargers
PST-5830-8-Tamiya 9.6V Tamiya styleª 8 1000 mA 6 AH 35 mA Obsolete click here for alternate 8 NiCad/NiMHcell charger
PST-5830-8-3 9.6V Power Assortmentª 8 1000 mA 6 AH 35 mA Obsolete click here for alternate 8 NiCad/NiMHcell charger
PST-5830-9-Tamiya 10.8V Tamiya styleª 9 1000 mA 6 AH 35 mA Obsolete click here for alternate 9 NiCad/NiMHcell charger
PST-5830-10-Tamiya 12.0V Tamiya styleª 10 1000 mA 6 AH 35 mA Obsolete click here for alternate 10 NiCad/NiMHcell charger
PST-5830-10-16H-Tamiya 12.0V Tamiya styleª 10 1000 mA 16AH 35 mA Obsolete click here for alternate 10 NiCad/NiMHcell charger
PST-5830-12-3 14.4V Power plug Assortment ª 12 cells 1000 mA 6 AH 35 mA Obsolete click here for alternate 12 NiCad/NiMHcell charger
ª Listed are the connector types which are on the shelf (see below). We can change these connectors for you in our shop if needed. See the connector discussion below for details.
Volume Pricing:
Connectors:
In high volumes we can put on any connector you want. The chargers that are in stock have the following connector:
Tamiya style connector for battery packs and chargers Tamiya style receptacle for battery packs and chargers, sometimes used in power supplies These are known in the RC world as the "Tamiya Connector." Note the polarity. Mating connectors are available at Radio Shack or electronic distributors.

NEW! Connectors for product development:
Several of our wall mount chargers are now available with a switchable power-plug style connector.
Connectors Included with the Power Assortment, most others are in stock as well
2.5 mm audio-style 3.5 mm audio-style
3.5 mm OD x 1.35mm ID Barrel 4.0 mm OD x 2.5 mm ID Barrel
5.5 mm OD x 1.5 mm ID Barrel  5.5 mm OD x 2.5 mm OD Barrel
16 connector set available extra, click here. Extra connectors

Advantages:

OEM Battery Chargers Inexpensive wall mount adapter with peak charge control circuit.

OEM Power Supplies Adaptable to any voltage and battery size.

OEM Power Supplies Single LED changes color to indicate state of charge.
