How does capacity correlate with charge voltage for lithium iron phosphate batteries?

1 cell, 2 cell, up to 8 cell lithium iron phosphate battery chargers, LiFePO4 battery chargers3.65 Volts per cell battery chargers for LiFePO4 packs from PowerStream. 1-cell to 8-Cell chargers.
12 volt large lithium ion packs from PowerStream with high capacity and high power
12 Volt high-power, high capacity lithium iron phosphate packs

battery discharge test equipment for tiny batteries Battery capacity tester for small and tiny cells

How much voltage does it take to charge a lithium-ion battery?

Motivation: Most batteries have a distinct charge voltage. Below that voltage you cannot move the chemistry in the right direction, above that voltage you can fully charge the battery, even though it might take a long time if you are barely above the chemistry voltage.

With lithium-ion (lithium-ion, lithium polymer, lithium iron phosphate, etc.) this is not the case. There is a voltage below which there is no action, the chemistry just won't move. But a big part of the charging process is getting ions in and out of solid compounds. These compounds have space between the crystal planes, or within the crystal structure, for small ions, such as lithium, to insert themselves. But it takes force to drive them in, and the more force the more the loading of the crystal. This loading of small atoms into a crystal structure is called intercalation.

So it makes sense that the amount of charging depends on the voltage. But how? I haven't been able to find any data on this, so we decided to do the experiment.


1. I used a 26650 cells from four different manufacturers. This shows that there is some variation in the chemistry of LiFePO4 cells, but the gross features are the same.
2. Charging was done with a lab power supply, the voltage was set and the power supply current was limited to 1.6 amps. The battery would start out at 1.6 amps and when the voltage rose to the set limit, the current would drop. In most cases I waited until the current dropped to below 30mA. This is a classic constant current-constant voltage charge.

3. The battery was discharged at 2.5A rate, approximately 1C to 2.6 volts termination voltage.
Summary of tests, see discharge curves below
Charge voltage Capacity at 3.65V 3.0V 3.1V 3.2V 3.3V 3.4V 3.5V 3.6V 3.7V 4.2V
K Series 2249 mAH 48 mAH 93 174 691 2222 2232 2249 2249 2249 mAH
Percentage of 3.65V capacity 2% 4% 8% 31% 99% 99% 100% 100% 100%
G Series 2310 mAH 47 mAH 126 168 703 2257 2293 2309 2310 2324 mAH
  2% 5% 7% 30% 98% 99% 100% 100% 101%
A Series 2136 mAH 57 mAH 101 173 543 2044 2127 2128 2136 2186 mAH
    3% 5% 8% 25% 96% 100% 100% 100% 103%
H Series 2236 mAH 0 mAH 19 60 440 2153 2175 2196 2236 2238 mAH
    0% 1% 3% 20% 96% 97% 98% 100% 100%

Commentary. I include the lithium ion results at the very bottom of this page for comparison. As you can see the iron phosphate results also show an increase in the capacity with charge voltage, but there are some interesting differences. First, the charging starts at a lower voltage than lithium ion, with some charging starting as low as 3V. Second, there is significant charging at 3.3 volts, which opens up some applications for battery backups in 3.3 volt systems. Third, there isn't much difference in capacity when charged at 3.4V or 4.2 volts. Maybe 3% maximum. So surprisingly you can charge one of these cells at 3.4V and get almost the same capacity as charging at the recommended 3.65V.

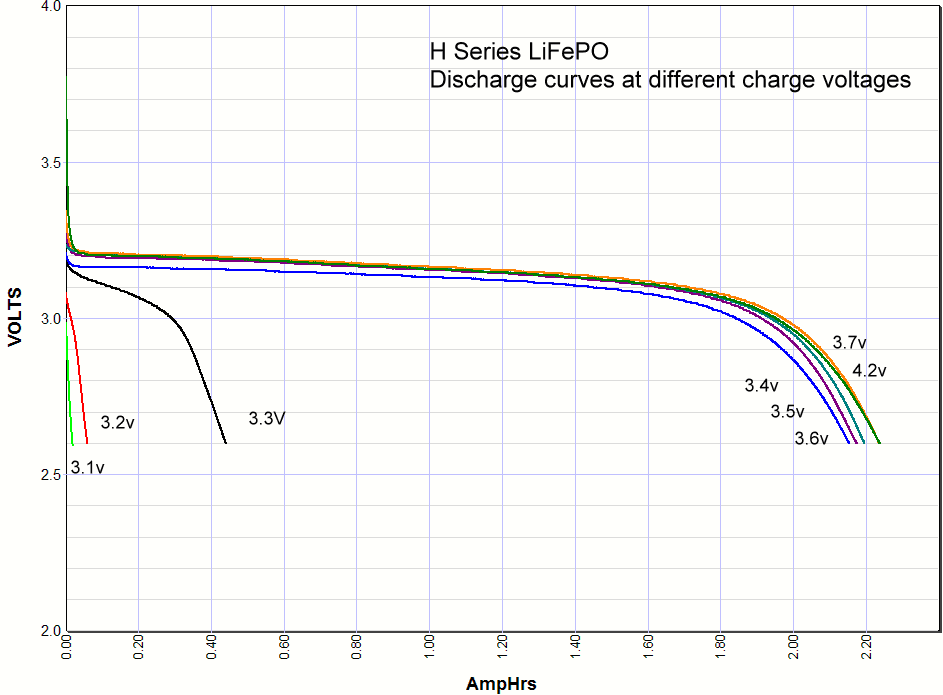

*Note: Charging above 4.20 volts is bad for the battery cycle life! LiFePO4 discharge curves
LiFePO3 discharge curves
Lithium iron phosphate charge voltage versus discharge curvesCommentary: It looks like the magic number is around 3.3 volts. Below that you don't have significant charging, above that you do. A lithium iron phosphate battery doesn't care if it is never fully charged, so if all you have available is 3.3 volts and you don't mind the loss in capacity you could use the 3.3 volts. This opens up new possibility for a simple but very long life backup battery in 3.3 volt systems.

It looks like the A series cells definitely have some lithium cobalt mixed in with the iron phosphate because when it is charged to 4.2 volts there is higher voltage at the beginning of the discharge, whereas the others don't have any energy stored between 4.2V and 3.6V. You can also see this effect at the end of the discharge curve where this added capacity at the beginning of the discharge curve shows up in pushing the end of the discharge curve further out.

Discharge curves of a lithium ion battery charged at different charge voltages between 3.5 and 4.3 volts These curves show the results
for the 4.2V lithium ion chemistry for comparison
