Ultrathin Primary Lithium Batteries from PowerStream

0.5 mm to 7mm thick, 16mAH to 3000mAH

For rechargeable ultrathin cells click here
ultrathin lithium ion batteries
battery discharge test equipment for tiny batteries
Battery discharge tester for small and tiny cells
ultrathin lithium polymer batteries
Cells as thin as 450* microns
*The thinnest battery that we can accept a purchase order for is 420 microns, or 0.42 mm. The price for the 0.42 may be higher due to the yield loss.

Features:
1. High operating voltage (3.0V)
2. Energy density is high
3. More capacity than a rechargeable cell
4. Self-discharge is less than 2% per year
5. Wide temperature range
6. Safety characteristics are excellent
7. Processing temperatures for these cells is 100°C for less than 60 seconds, 120°C for less than 20 seconds and 140°C for less than 5 seconds.


Thin Cell primary CR batteries packed with soft foil technology.

These are safe, thin and lightweight primary (not rechargeable) lithium manganese dioxide batteries. These thin film batteries use is the same chemistry as the CR series coin cells, but in a polymer foil package, similar to that used for lithium polymer batteries. These ultra-thin cells (Aluminum foil packed Li/MnO2 batteries) have a voltage of 3.0V and capacity ranges from 400mAh to 3000mAh).

Applications:

Widely applied to: Nonstop charging systems, Intelligent parking lot, container identification, vehicle toll check, personnel identification, automated railcar identification management , Automated road charge management, Automated voyage passenger luggage identification transport management, vehicle entry and exit control, Campus all-purpose card, public transportation card, Driver's license card, Health (medial treatment or history) card , animal and livestock identification, automated management of logistic& storage, automobile remote control lock, smart door locks.

Features: Besides the traditional advantage of Lithium manganese batteries, the thin cells have the following advantages:
(1) Good safety: Using soft aluminium foil packaging eliminates the possibility of explosion, and greatly reduces the probability of fire.
(2) Small volume: Comparing the same capacity, the volume would be smaller 15% than the batteries with metal shell such as coin cells and cylindrical cells due to the foil packaging used in the thin cells.
(3) Light weight: the weight is lighter 40% than cells with metal shells of the same capacity.
(4) High capacity: Comparing volume, the capacity is higher 10% than batteries with metal shells.
(5) Higher discharge current and discharge level: the battery is vacuum packed, so atmospheric pressure forces the anode and cathode foils together. 3C discharge rate is possible for specially designed cells.
(6) Wide range of temperatures: can be used under -40~75 °C (-40 to 167 °F).
(7) Low self-discharge: The rate of self-discharge per year is smaller than 2%.

(8) Flexibility in shape & size: this technology allows custom cells to be made with low-cost tooling.
Type

Nominal
capacity
Nominal
voltage
Operating current
mA (max)
Standard
discharge
current mA
Cut off
voltage
Dimension
mm (max)
Weight
Production mold already exists **
Price
Quantity
1-99

Price
Quantity
100-999
GB

mAh
V
continuous
pulse
current mA
V
T*W*H
g

CP101015   10 3.0 1 3 0.2 2.0 1*10*15   YES
  1200 9.0 400 10/800 1.0 5.0 17.5*26.5*48.5 30 YES, 9V transistor radio battery $7.90 add_to_cart.gif $5.40
CP0452922   16 3.0 9 40 0.35 2.0 0.45*29*22 0.5 YES $5.00

Not currently available, sorry
N/A
CP0452345 UN38.3 30 3.0 12.5 40 1.0 2.0 0.45*23*45 0.5 YES $5.00
N/A
CP0453730   35 mAH 3.0 12.5     2.0 V 0.45*37*30 mm 0.67 g YES $5.00
$3.80
CP202914   65 3.0 20 30 1.0 2.0 2.1*29*15 1.5 YES $5.00
N/A
CP142828 UN38.3 100 3.0 20 30 1.0 2.0 1.4*28*28 1.5 YES $5.00
$1.33
CP153030 UN38.3 120 3.0 50 100 1.0 2.0 1.5*30*30 2.5 YES $5.00
N/A
CP251525 UN38.3  150  3.0 50 100 1.0 2.0 2.5*15*25   YES $5.00
$3.80
CP105050 UN38.3 200 3.0 50 80 1.0 2.0 1.0*50*50 3.5 YES MOQ 1000 pieces
CP203028
replaced by the CP203030
  200 3.0 50 80 1.0 2.0 2.0*30*28   YES
CP203030   200 3.0 50 80 1.0 2.0 2.0*30*30     $5.00
$3.52
CP154040 UN38.3 250 3.0         1.5*40*40
CP125035   260 3.0 165 90 1.0 2.0 1.2*50*35 YES
MOQ 1000 pieces

CP107070 UN38.3 300 3.0          1.0*70*70    YES $5.00

CP203345   450 3.0 100 200 1.0 2.0 2.1*33*46 5.0 YES $5.00
$3.80
CP223045 UN38.3 480 3.0 150 300 1.0 2.0 2.3*30*46 5.5 YES $5.00
N/A
CP202850   500 3.0 150 300 1.0 2.0 2.1*28*51 5.5 YES $5.00
MOQ 1000 pieces
N/A
CP204440   500 3.0 150 300 1.0 2.0 2.1*44*41 5.5 YES $5.00
$3.80
CP502128 UN38.3 550 3.0 200 300 1.0 2.0 5.0*21*28 6.0 YES $5.00
$3.80
CP155050 UN38.3 550 3.0 200 300 1.0 2.0 1.5*50*50 6.0 YES $5.00add_to_cart.gif $3.80
CP204142   550 3.0 200 300 1.0 2.0 2.0*41*42 6.0 YES Not stocked
$3.80
CP224035 UN38.3 600 3.0       2.3*40*35   YES $5.00
$3.80
CP403030 UN38.3 550 3.0 300 500 1.0 2.0 4.0*30*30   YES $5.00
$3.80
CP352440 UN38.3 650 3.0 200 500 5.0 2.0 3.5*24*40 YES $5.00
$2.15
CP225040 UN38.3 750 3.0 200 500 1.0 2.0 2.3*50*41 7.0 YES $5.00
$2.45
CP204547   750 3.0 200 500 1.0 2.0 2.0*45*47 7.0 YES $5.00
$3.80
CP234044 UN38.3 650 3.0 200 500 1.0 2.0 2.3*40*45 7.0 YES $5.00
N/A
CP254442 UN38.3 800 3.0 300 500 1.0 2.0 2.6*44*43 6.5 YES $5.00
$3.80
CP224147 UN38.3 800 3.0 300 500 1.0 2.0 2.2*41*47 6.5 YES $5.00
$3.80
CP224248 UN38.3 800 3.0 300 500 1.0 2.0 2.2*42*48 6.5 YES add_to_cart.gif $3.80
CP264845 UN38.3 1000 3.0 300 800 1.0 2.0 2.6*48*45 9.0 YES $6.50
N/A
CP302585   1000 3.0 300 000 1.0 2.0 3.0*25*85 7.5 YES $5.00
$2.15
CP402475 UN38.3 1400 3.0 500 800 5.0 2.0 4.0*24*75   YES $7.00
N/A
CP452475 UN38.3 1400 mAH 3V 500 800 5.0 2.0 4.5*24*75   YES $7.00
N/A
CP255047   1200 3.0 500 800 5.0 2.0 2.5*50*47 9.0 YES $6.50
3.80
CP502440, CP502442
UN38.3 1200 3.0 400 800 1.0 2.0 5.1*24*41 8.5 YES $6.50
$3.80
CP952434 UN38.3 1500 3.0V 700 900 5.0 2.0 9.5*24*34   YES $6.50
$4.30
CP702440   1500 3.0 500 1000 5.0 2.0 7.0*24*40 mm   YES $7.00
$4.65
CP503742 UN38.3 1900 3.0 800 1000 5.0 2.0 5.0*37*42 16 YES $7.00
$4.65
CP355050   2000 3.0 800 1200 5.0 2.0 3.5*50*51 17.5 YES $7.50
$2.27
CP504644 UN38.3 2300 3.0 1200 1500 5.0 2.0 5.0*46*45 17.5 YES $7.50
$4.90
CP603450 UN38.3 2300 3.0 1200 1500 5.0 2.0 6.0*34*51 18.0 YES $7.00
$4.65
CP505050 UN38.3 3000 3.0 1500 2000 5.0 2.0 5.0*50*51 23.0 YES $10.50
$4.90

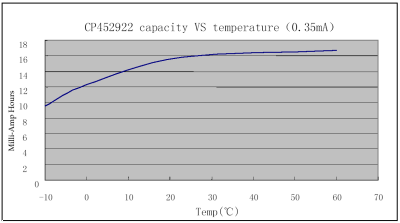

temperature curve for the CP452922

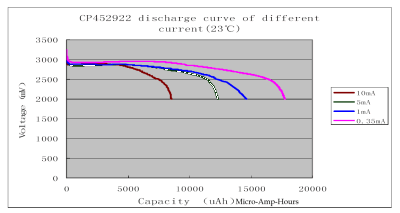

Discharge cuvers for the CP452922
